PEX2

Termination Boxes

5 Aug

Written By Mogulby

PEX SERIES GRP
TERMINAL ENCLOSURE

FEATURES + BENEFITS

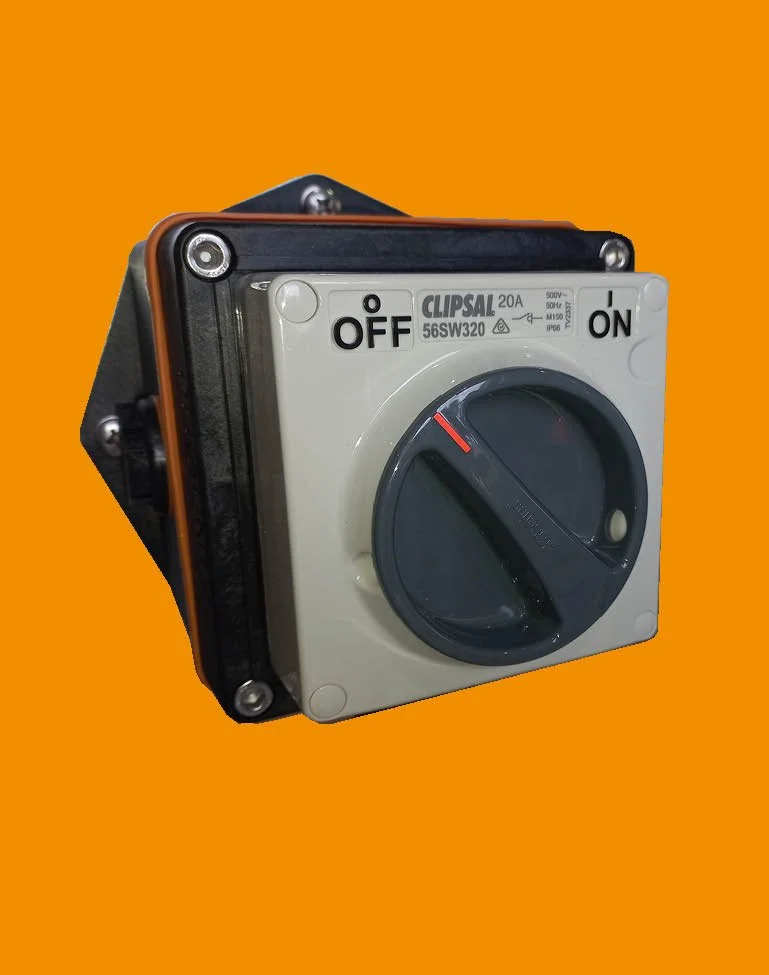

• Clipsal switch fitted to lid
• GRP (Glass Reinforced Polycarbonate)
• Valox FR Resin 553 (UV Rated)
• 110 MPA Tensile Strength
• IK10 Impact Rating
• Silicone Gaskets UV Rated
• Entries 3 X 20MM + 2 X 25MM
• Terminals Standard 6 X 6MM2 Screw Terminals, 2 X 6MM2 Earth
• Range of Terminal Sizes Available
• Metal Threaded Inserts

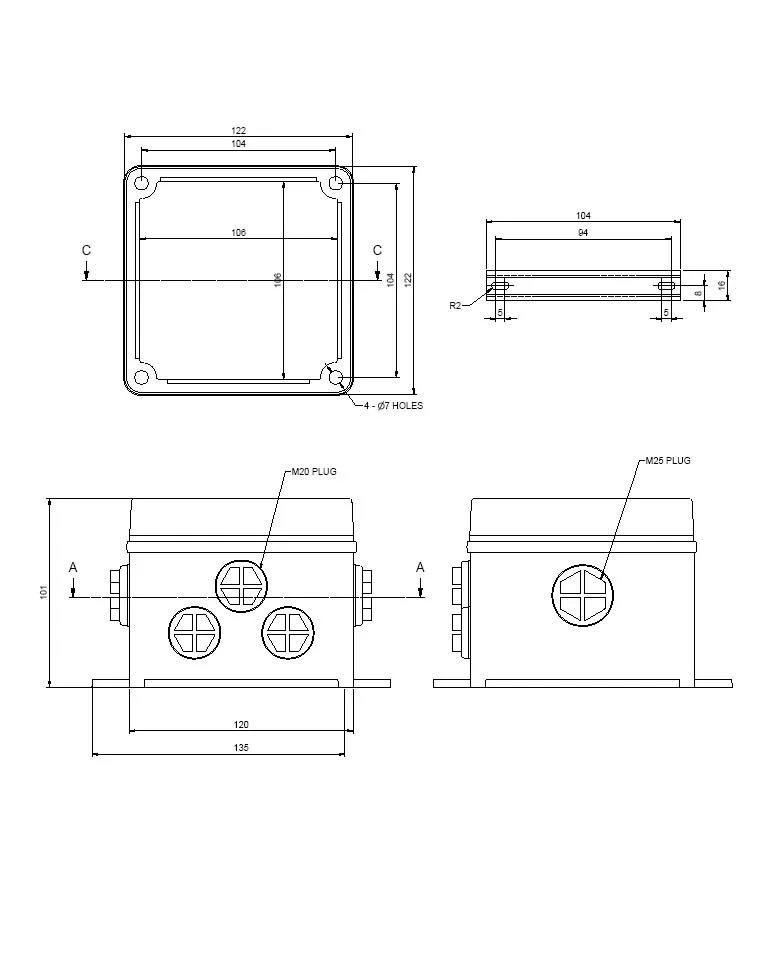

ORDERING CODES


        Model Number
        Dimensions mm
        Useable Depth

        H
        W
        D

        PEX2
        164
        120
        100
        100
