MID-HINGED TAPERED POLES

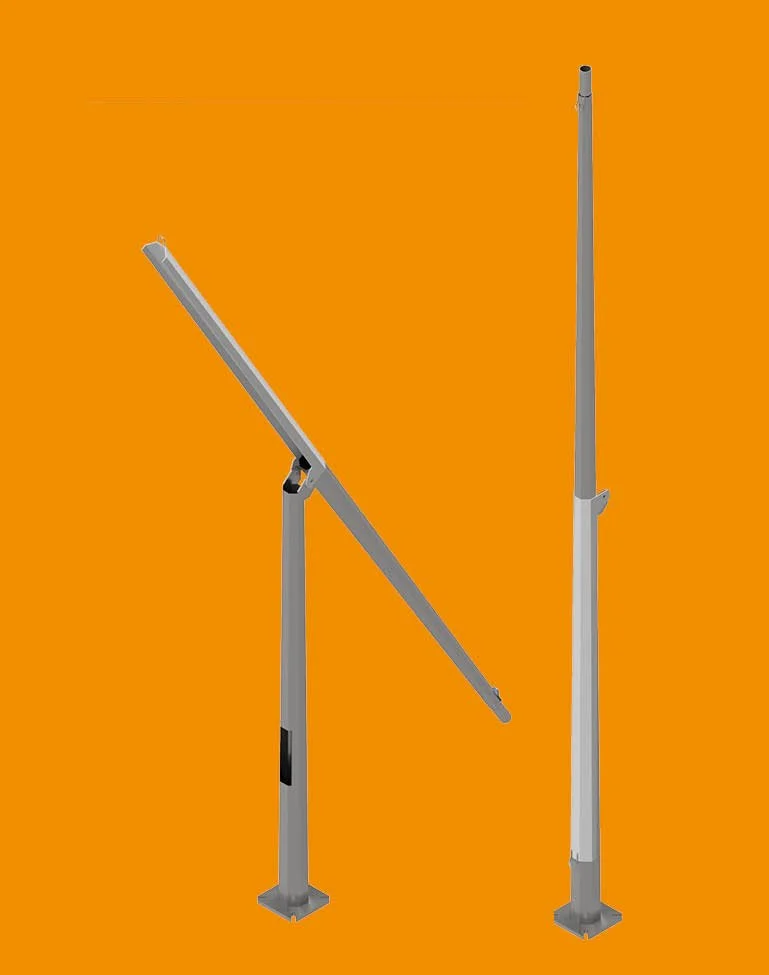

MID-HINGED POLE ARRANGEMENT
TYPICAL APPLICATIONS
ALL INDUSTRY, COMMERCIAL AND MINING APPLICATIONS. The Mid-Hinged series introduces a ground breaking design that simplifies maintenance and installation. This innovative feature allows for easy access to luminaires at ground level, reducing the need for specialized equipment and minimizing downtime. Efficiency meets simplicity with UltraSwing Mid-Hinged poles. Ideal for all industry, commercial and mining applications, lighting on Walkways, Platforms, Stairways, Spiral Stairways, Roof Tops, Conveyors
FEATURES + BENEFITS
All industry, commercial and mining applications
For use in commercial and public access areas.
Single operator raising and lowering
Suitable for mounting of solar, CCTV, and lighting.
Increase operation time,
Increase personnel safety and risk reduction.
Lower your costs
Reduce on-site lifting + access equipment
Galvanised for durability.
Accessories and options available
Powder coating optional
WIND REGIONS
Suitable for Wind Regions A, B, C, D on Application
FIXED TAPERED POLE ORDERING CODES
| MODEL | POLE LENGTH | POLE TYPE | BASE PLATE SIZE |
|---|---|---|---|
| US-4M-MFTP | 4M | TAPERED MID HINGED POLE |
330 X 330 X 16 THK |
| US-6M-MFTP | 6M | TAPERED MID HINGED POLE |
330 X 330 X 16 THK |
| US-8M-MFTP | 8M | TAPERED MID HINGED POLE |
330 X 330 X 20 THK |
| US-10M-MFTP | 10M | TAPERED MID HINGED POLE |
330 X 330 X 25 THK |
| US-12M-MFTP | 12M | TAPERED MID HINGED POLE |
350 X 350 X 25 THK |
| US-15M-MFTP | 15M | TAPERED MID HINGED POLE |
450 X 450 X 25 THK |
| MODEL | POLE LENGTH | POLE TYPE | BASE PLATE SIZE |
|---|---|---|---|
| US-CW | 400MM X 100MM X 25MM |
7.75KG | 12M-MFTP 15M-MFTP |
| USCW1 | 300MM X 50MM X 20MM |
2.94KG | 4M-MFTP 6M-MFTP 8M-MFTP 10M-MFTP |
| USCW2 | 400MM X 85MM X 25MM |
6.67KG | 4M-MFTP 6M-MFTP 8M-MFTP 10M-MFTP |
