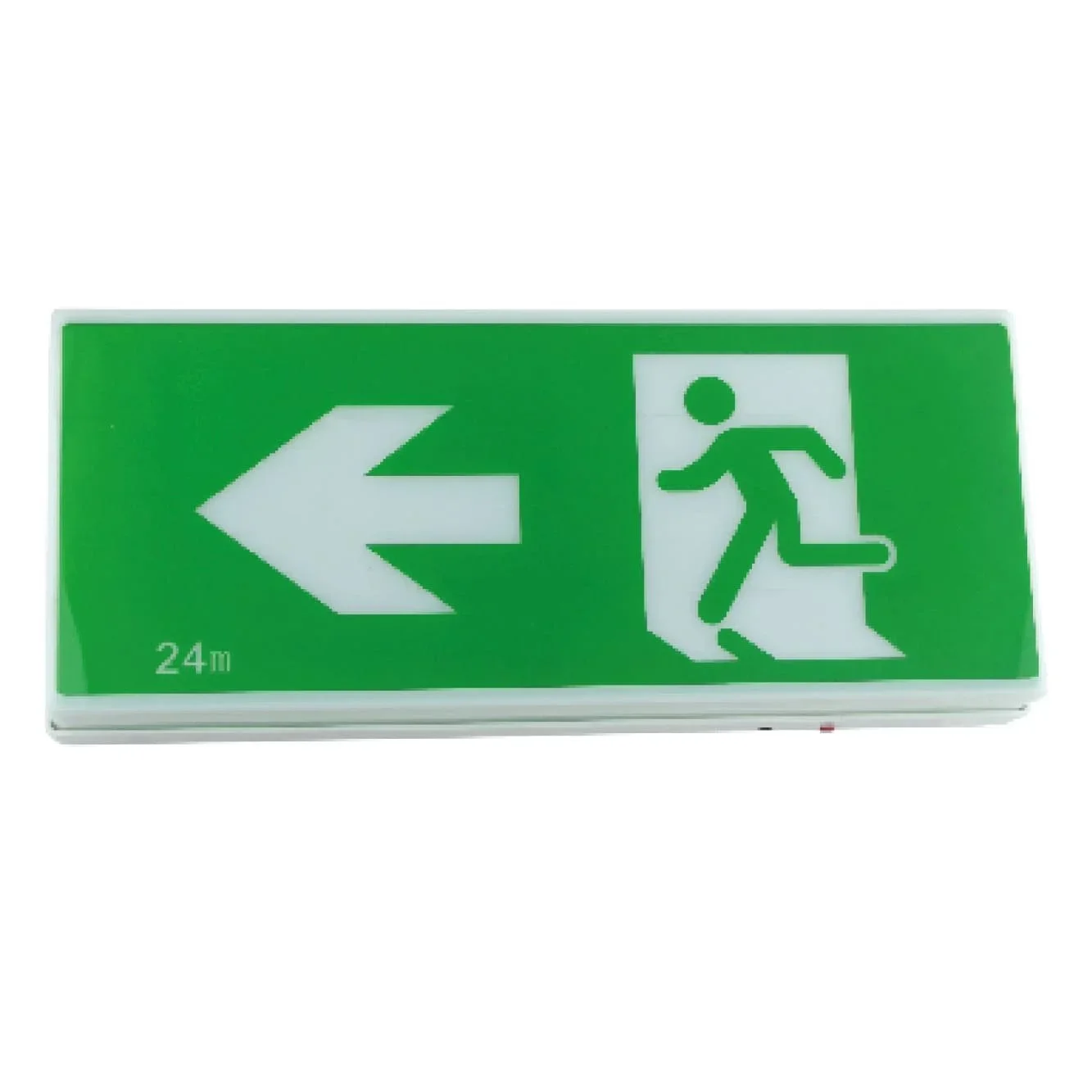

RUNNING MAN I – EXIT LIGHTING
Features
The Running Man I is an energy efficient, long life LED emergency exit
light. It features both single and double sided decals with both the Running
Man and Exit decals included. The Running Man I is complete with a large
terminal block + entry cable and maintained emergency operation mode.
Typical Applications
Heavy Vehicle Workshops
MIA Infrastructure
Warehouses & Stores
General Workshops
Factories
Heavy Industry
Overhead Cranes
Airports
Specifications
| Model: | PLIRAP30 | PLIRAP60 | PLIRAP90 | PLIRAP120 | PLIRAP150 | PLIRAP180 |
|---|---|---|---|---|---|---|
| Optical Characteristics | ||||||
| Rated Wattage | 30W | 60W | 90W | 120W | 150W | 180W |
| Lumens | 3900 | 7800 | 12150 | 16200 | 20250 | 24300 |
| System Efficacy | 130Lm/W | 135Lm/W | ||||
| Colour Temperature CCT | 5000K (4000K / 3000K) | |||||
| CRI (Ra) | >70 | |||||
| Reported L70 | >50,000 Hours | |||||
| Lens Optic Type | 90° / 120° / 30°×70° / 60°×90° / 40°×130° | |||||
| Electrical Characteristics | ||||||
| Input | 100–277VAC | |||||
| Frequency | 50Hz | |||||
| Power Factor | >0.90 | |||||
| Total Harmonic Distortion | <10% | |||||
| Environment | ||||||
| IP Rating | IP65 | |||||
| Impact Rating | IK10 | |||||
| Operating Temperature | -30°C to 50°C | |||||
| Product Material and Mounting | ||||||
| Option 1 | Adjustable Surface Mount | |||||
| Option 2 | Wire Suspension Mount | |||||
| Product Material | Aluminum Alloy | |||||
| Lens / Optics Material | PC Lens | |||||
| Dimensions and Weights | ||||||
| Product Dimensions | 280×137×102 | 486×137×102 | 718×137×102 | 718×275×102 | 948×137×102 | 1178×137×102 |
| Product Weight | 2KG | 3.4KG | 4.7KG | 5.8KG | 6.9KG | 8.7KG |
| Packaging Dimensions | 350×200×160 | 555×200×160 | 790×200×160 | 790×338×160 | 1020×200×160 | 1250×200×160 |
| Gross Weight | 2.3KG | 4.0KG | 5.3KG | 6.5KG | 8.0KG | 9.8KG |
| Warranty and Certifications | ||||||
| Warranty | 5 Year Warranty | |||||
| Certifications | CE / SAA / RoHS / ENEC / CB | |||||
