RUNNING MAN II – EXIT LIGHTING
Features

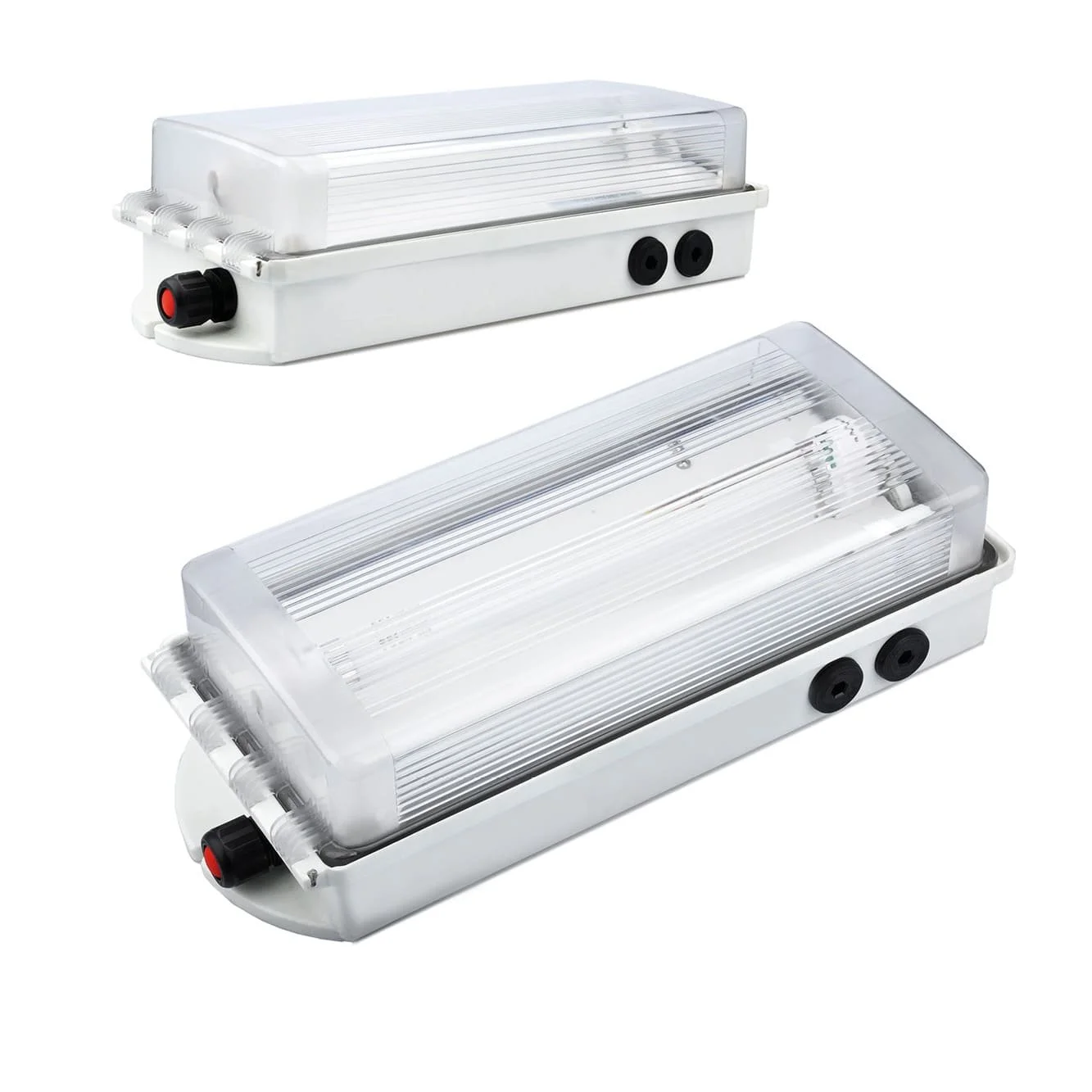

The Running Man II is a corrosion resistant emergency luminaire for use in hazardous areas that may be subject to flammable liquids, gasses, vapors or combustible dusts. It features a corrosion resistant GRP body and polycarbonate diffuser with a central locking device that disconnects the supply when the luminaire is opened. Applications include Chemical and Petrochemical Processing, Storage Facilities, Industrial and Commercial.
Typical Applications
Switch Rooms
Control Rooms
Electrical Equipment Rooms
Tunnels
Industrial Warehouse
Office Complex
Workshops
Chemical and Petrochemical Processing
Storage Facilities
Specifications
| Model | PLIRM2 |
|---|---|
| Optical Characteristics | |
| Rated Wattage | 3W |
| Lumens | 160 |
| System Efficacy | 53Lm/W |
| Colour Temperature CCT | 5700K |
| CRI (Ra) | >70 |
| Reported L70 | 50,000 Hours |
| Lens Optic Type | Polycarbonate |
| Viewing Distance | 30M |
| Electrical Characteristics | |
| Input | 110–240V |
| Frequency | 50/60Hz |
| Power Factor | >0.95 |
| Total Harmonic Distortion | 20% |
| Environment | |
| IP Rating | IP66 |
| Impact Rating | IK10 |
| Operating Temperature | -20°C to 55°C |
| Product Material and Mounting | |
| Option 1 | Surface Mount |
| Product Material | Polycarbonate |
| Lens / Optics Material | PC Lens |
| Dimensions and Weights | |
| Product Dimensions | 447×183×96 |
| Product Weight | 3.5KG |
| Packaging Dimensions | 460×220×180 |
| Gross Weight | 3.2KG |
| Warranty and Certifications | |
| Warranty | 5 Year Warranty |
| Certifications | IECEx |
| Classification | Zone 1 & Zone 21 / Zone 2 & 22 |
| Rating |
IECEx/Gas: Ex eb ib op is IIC T4 Gb (without fuse and isolator) IECEx/Dust: Ex tb IIIC T80 Db (without fuse and isolator) |
