CYCLOPS – LED CONVEYOR & BULK HEAD LIGHT
Features

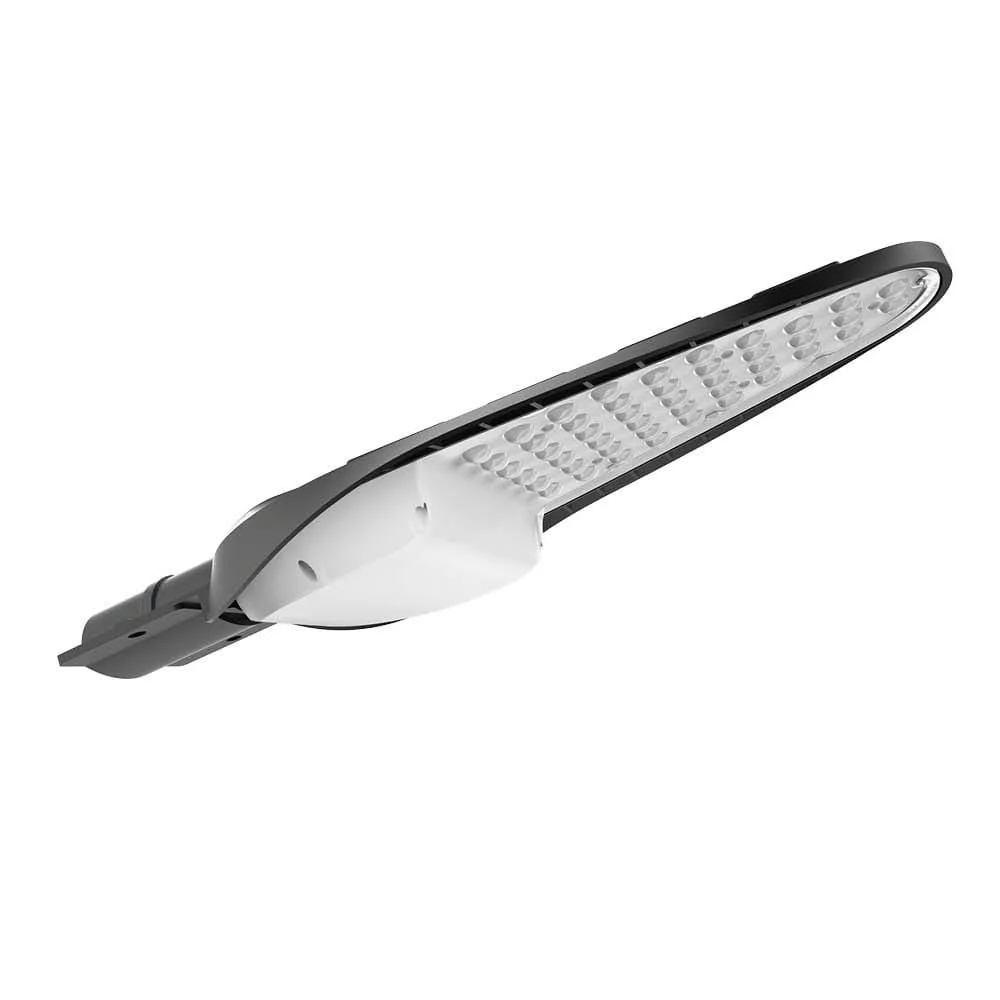

The Cyclops is a cutting-edge, high-powered LED Conveyor Light, designed to deliver exceptional performance and durability. It is equipped with a high-transmittance optical lens that maximizes luminous efficiency, achieving up to 130 lumens per watt. This advanced lighting solution combines functionality with an ultra-slim, elegant design that meets stringent IP66 and IK08 standards, ensuring it is both dust-tight and highly resistant to water and impact. The Cyclops features a robust die-cast aluminum body, specifically engineered to optimize heat dissipation and regulate temperature rise, making it ideal for demanding industrial environments where reliable, long-lasting performance is essential.
Typical Applications
Collector Roads
Local Roads
Residential Roads
Country Road

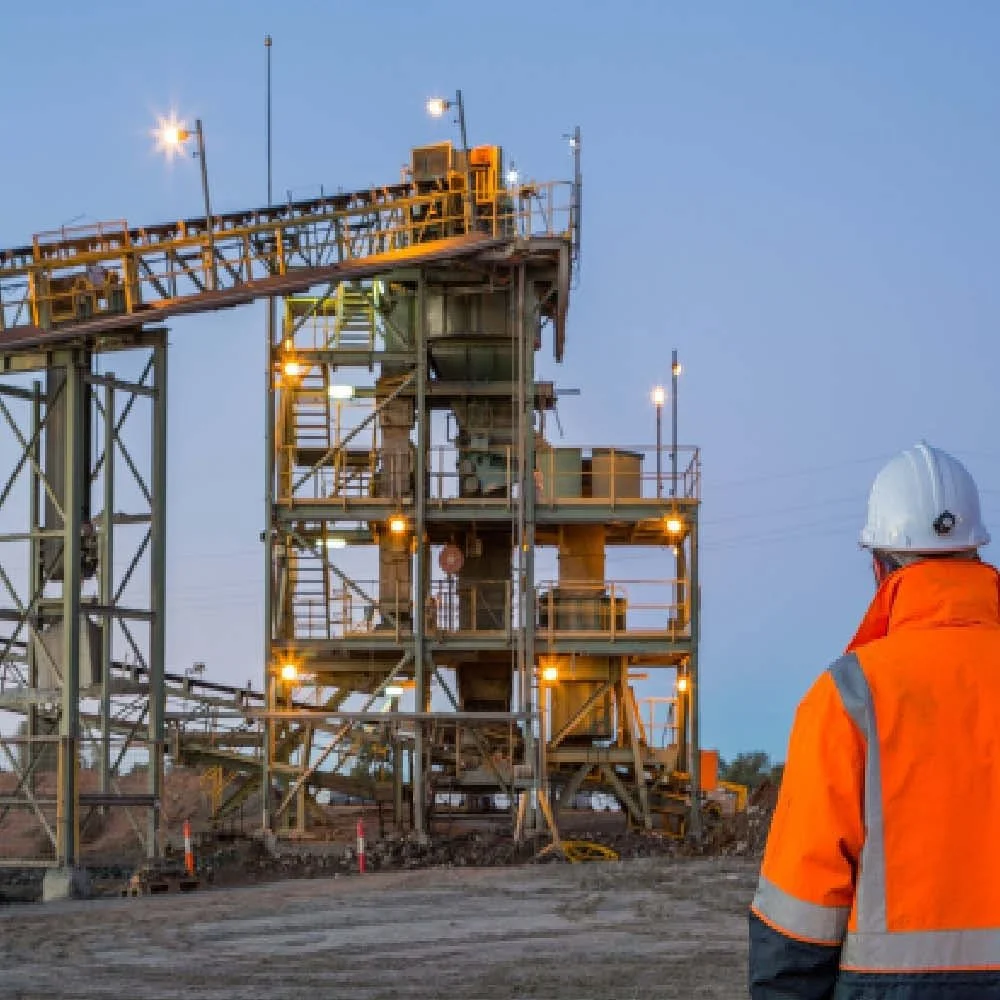

Processing Plants
Materials Handling
Lithium Processing
Power Generation
Specifications
| Model | PLICYC20 | PLICYC30 | PLICYC40 | PLICYC50 | PLICYC60 | PLICYC70 | PLICYC80 | PLICYC90 | PLICYC100 |
|---|---|---|---|---|---|---|---|---|---|
| Optical Characteristics | |||||||||
| Rated Wattage | 20W | 30W | 40W | 50W | 60W | 70W | 80W | 90W | 100W |
| Lumens | 2600 | 3900 | 5200 | 6500 | 7800 | 9100 | 10400 | 11700 | 13000 |
| System Efficacy | 130Lm/W | ||||||||
| Colour Temperature | 5700 (5000K / 4000K) | ||||||||
| CRI (Ra) | >70 | ||||||||
| Reported L70 | >50,000 | ||||||||
| Lens Optics | Type II (20–50W) | Type III (60–100W) | |||||||
| Electrical Characteristics | |||||||||
| Input | 120–277VAC | ||||||||
| Frequency | 50Hz | ||||||||
| Power Factor | >0.95 | ||||||||
| Total Harmonic Distortion | 15% | ||||||||
| Environment | |||||||||
| IP Rating | IP66 | ||||||||
| Impact Rating | IK08 | ||||||||
| Operating Temperature | -20°C to 50°C | ||||||||
| Product Material and Mounting | |||||||||
| Option 1 | Spigot 40–50mm / 40–60mm | ||||||||
| Product Material | Aluminium Housing | ||||||||
| Lens / Optics Material | PC Lens | ||||||||
| Dimensions and Weights | |||||||||

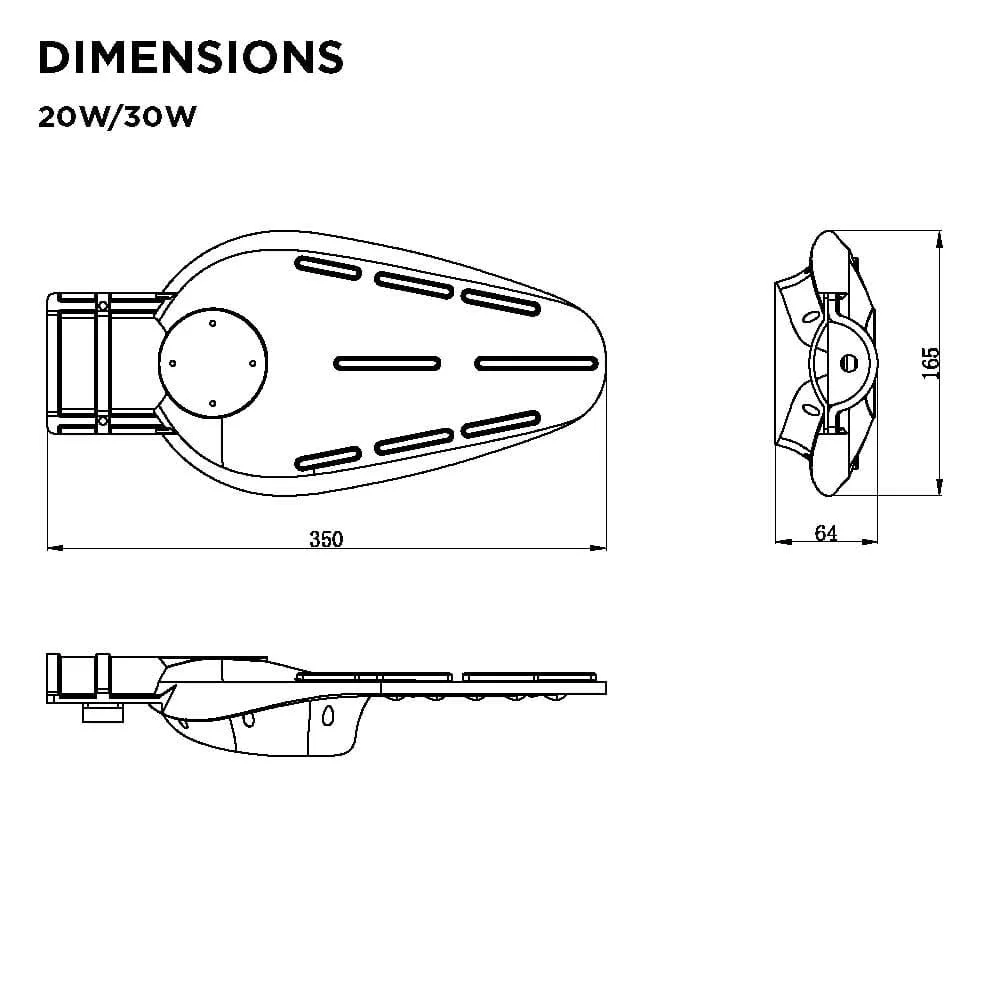

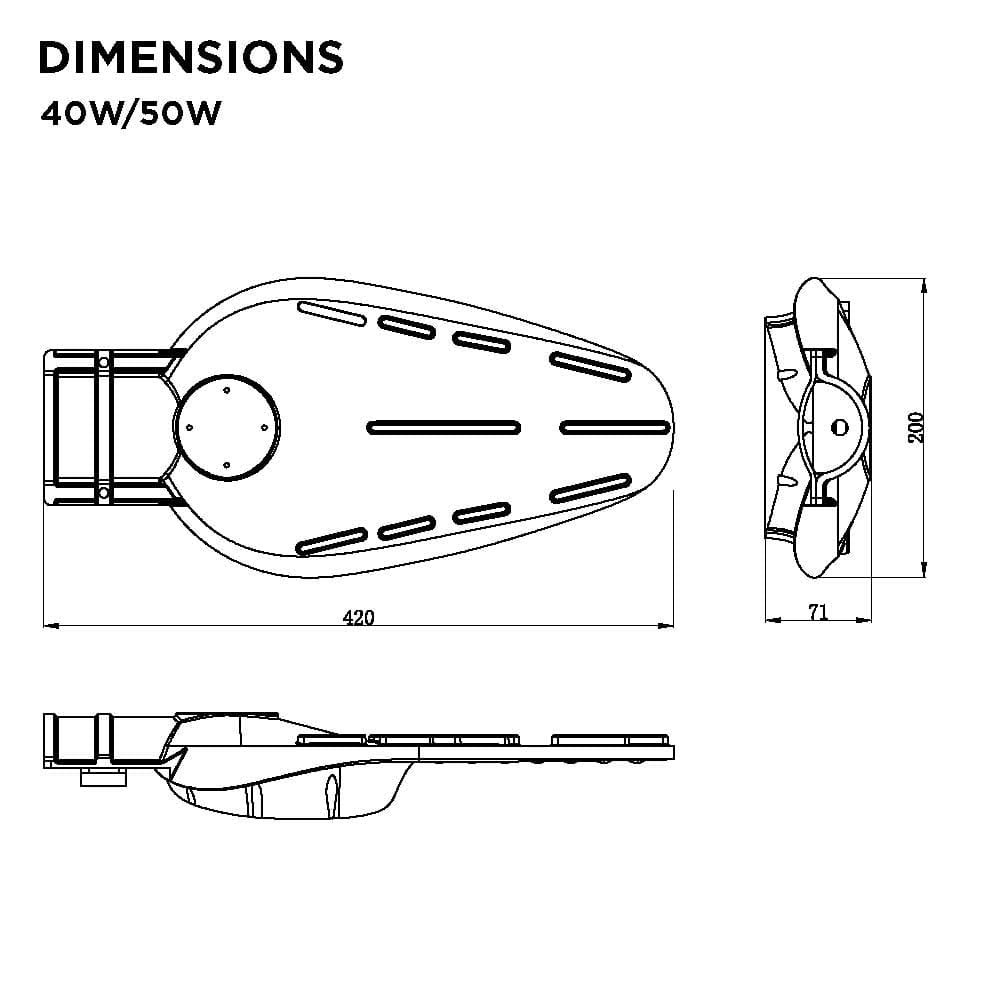

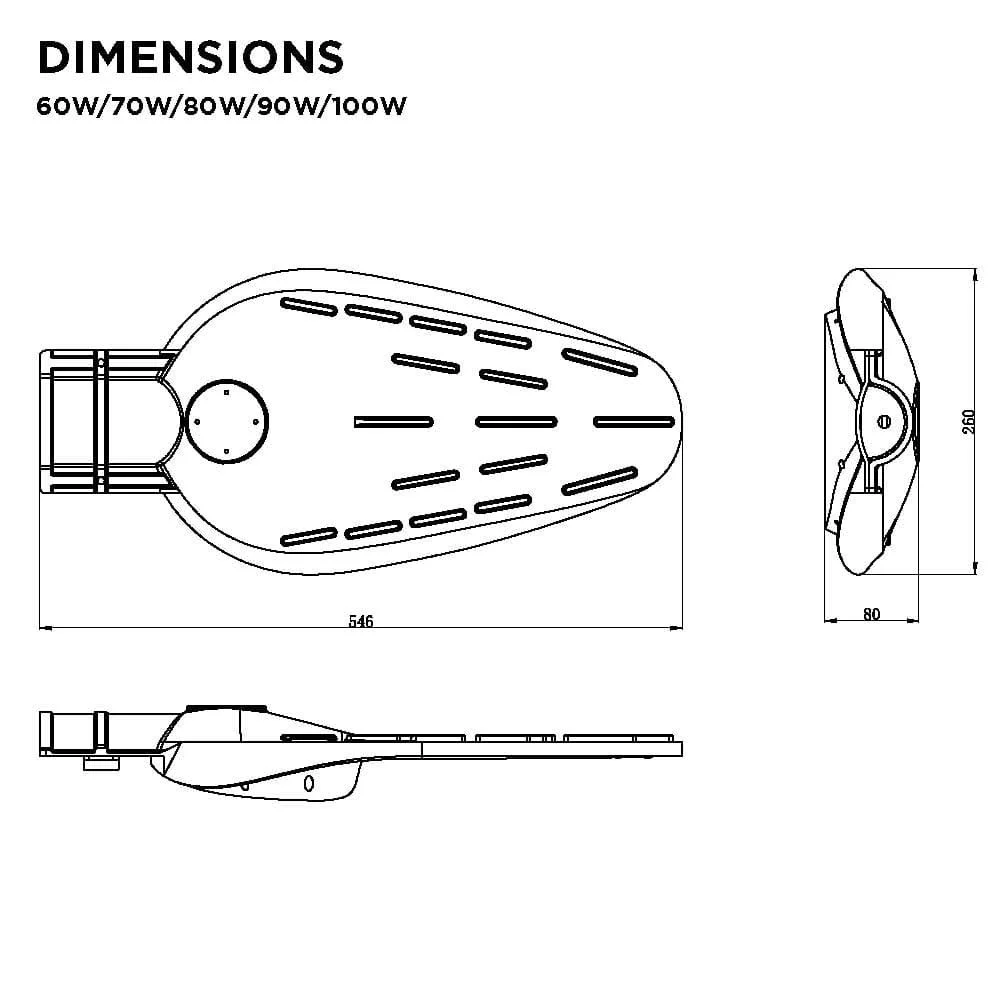

| Product Dimensions | 350×165×… | 420×200×71 | 546×260×80 | ||||||
| Product Weight | 8.8kg | 6.4kg | 5.6kg | ||||||
| Warranty and Certifications | |||||||||
| Warranty | 5 Year Warranty | ||||||||
