ILLUMINATOR SPECIFICATION V2
Features

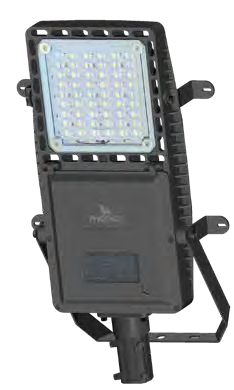

The Illuminator is the newest addition to the Phoenix EMS industrial lighting family and is designed to push the light further than ever before with 15 Meter spacing across Conveyor, Walkway and Platform Lighting.
The Illuminator reduces the number of light fittings through the use of superior optics and technology to reduce capital costs and provides a fitting that operates reliably in dusty, dry & hot Australian mining conditions
Typical Applications
Coal & Metalliferous Mine Process Plants
Quarries
Campsite Area Lighting
General Area Lighting Car Parks
Conveyors
Pedestrian Access Road Ways
Stacker/Reclaimers
Stairwells
Tunnels
Walkways Bulkheads
ACCESSORIES
SPIGOT ADAPTOR PLI/SP
U BRACKET PLI/UB
STIRRUP MOUNT PLI/ST
CORROSION PROTECTION COATING PLI/PC
AMBER TURTLE FRIENDLY 2200K PLI/A
GREEN EYEWASH PLI/G
DAY/NIGHT SENSOR PLI/DN
MOTION SENSOR (INDOOR UP TO 12 METRES) PLI/MSID
MOTION SENSOR (OUTDOOR UP TO 12 METRES) PLI/MSOD
NEMA 7 PIN SMART CELL PLI/NEMA
Specifications
| Model | PLI20 | PLI30 | PLI40 | PLI50 | PLI60 | PLI37DC |
|---|---|---|---|---|---|---|
| Optical Characteristics | ||||||
| Rated Wattage | 20W | 30W | 40W | 50W | 60W | 37W |
| Lumens | 3140 | 4710 | 6280 | 7850 | 9420 | 5809 |
| System Efficacy | 157Lm/W @ 4000K | |||||
| Colour Temperature CCT | 3CCT (2200K Amber Turtle Friendly / Green Eyewash) | |||||
| CRI (Ra) | >70 | |||||
| Reported L70 | >50,000 Hours | |||||
| Lens Optic Type | Type II / Type V | |||||
| Electrical Characteristics | ||||||
| Input | 90-305VAC | 24VDC | ||||
| Frequency | 50Hz | N/A | ||||
| Powerfactor | >0.95 / 230VAC | <0.9 | ||||
| Total Harmonic Distortion | <15% | N/A | ||||
| Environment | ||||||
| IP Rating | IP66 | |||||
| Impact Rating | IK08 (Optional IK09) | |||||
| Operating Temperature | -40°C To 50°C (0°C To 50°C Emergency Battery) | |||||
| Product Material and Mounting | ||||||
| Option 1 | Spigot Mount | |||||
| Option 2 | U Bracket/Trunnion Mount | |||||
| Option 3 | Stirrup Mount For Ceiling/Wall | |||||
| Product Material | Die Casting Aluminium | |||||
| Lens / Optics Material | Tempered Glass (PC Lens Optional) | |||||
| Dimensions and Weights | ||||||
| Product Dimensions | 479*268*92 | |||||
| Product Weight | 7.5KG | |||||
| Packaging Dimensions | 690*335*170 | |||||
| Gross Weight | 8.5KG | |||||
| Warranty and Certifications | ||||||
| Warranty | 5 Year Warranty | |||||
| Certifications | SAA / EMC | |||||
