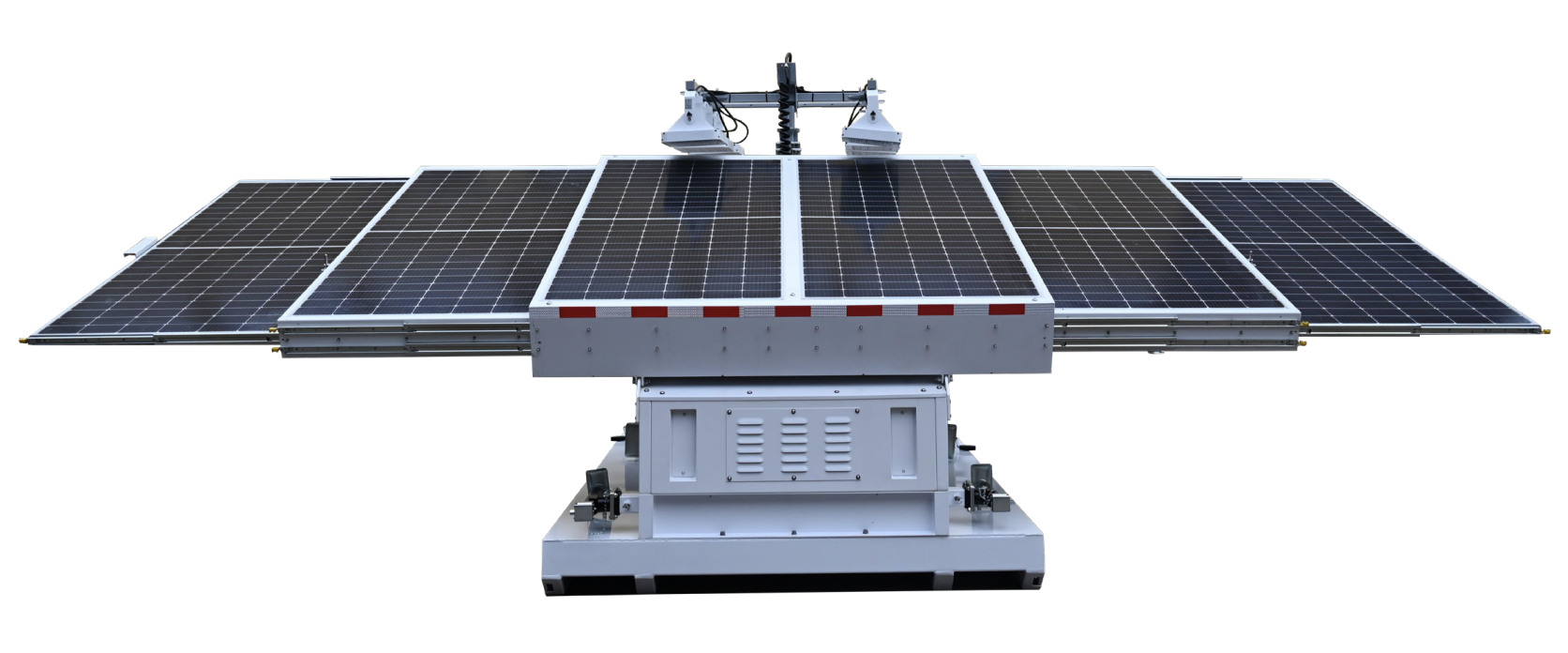

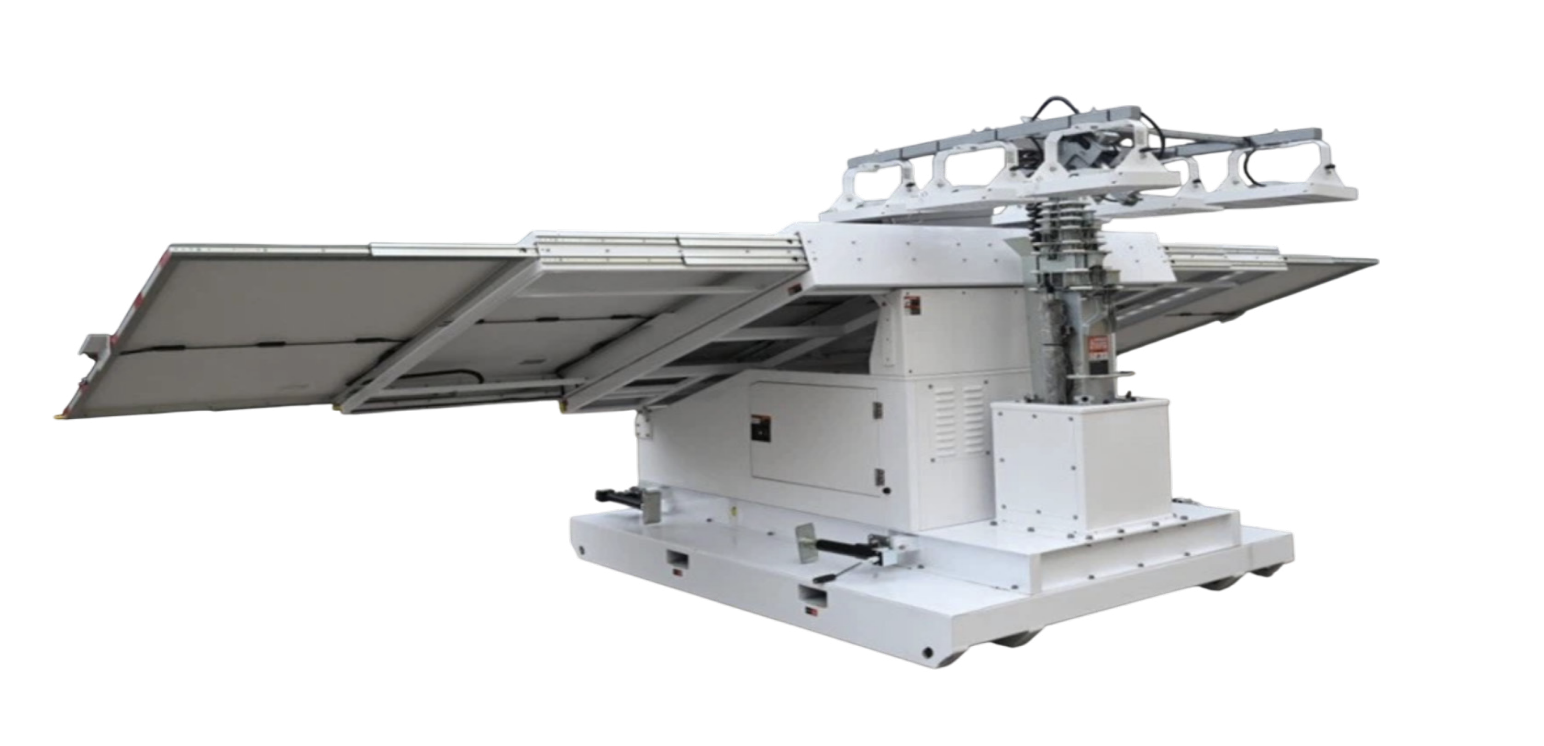

GTS 1800 SKID
The GTS-1800-SKD Solar Series skids from Green-Tek Solutions is a versatile alternative for emergency lighting, surveillance, and telecommunication needs, harnessing clean energy with its 6 solar panels while offering an optional 7-9m telescopic mast, compliant with Australian standards, making it easy to deploy, fuel-free, and silent in operation.
Its portable design enables rapid response in disaster zones, providing sustainable power without emissions or noise, suitable for diverse applications including emergency response, remote operations, and temporary installations.
TYPICAL APPLICATIONS
Mining, Civil & Construction, Rail, Power Generation & Utilities, Road/Cycleways/Walking Paths, Security & Surveillance Municipal Councils & Events

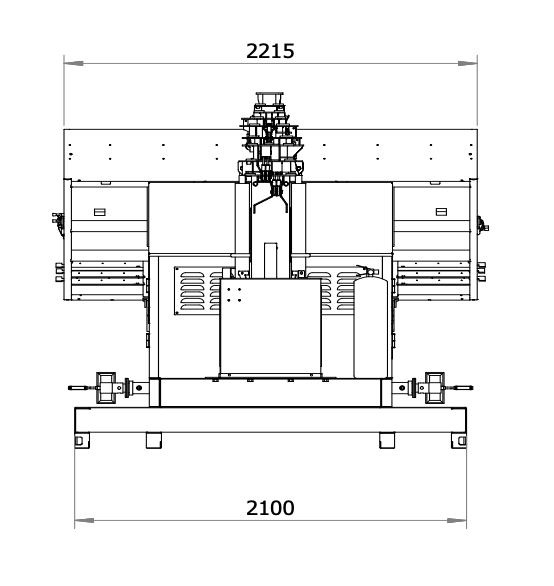

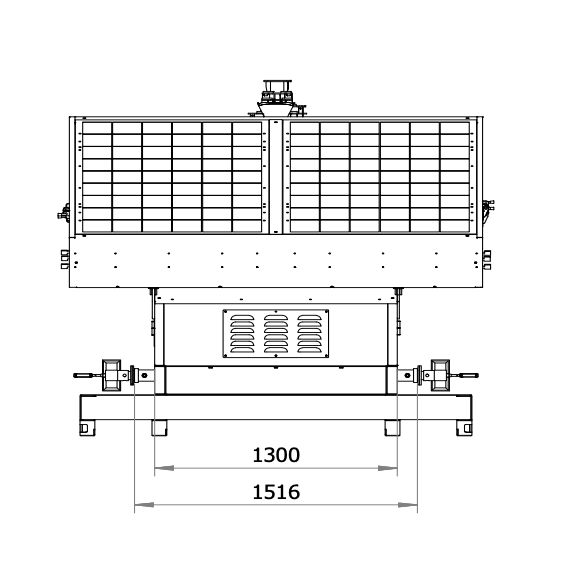

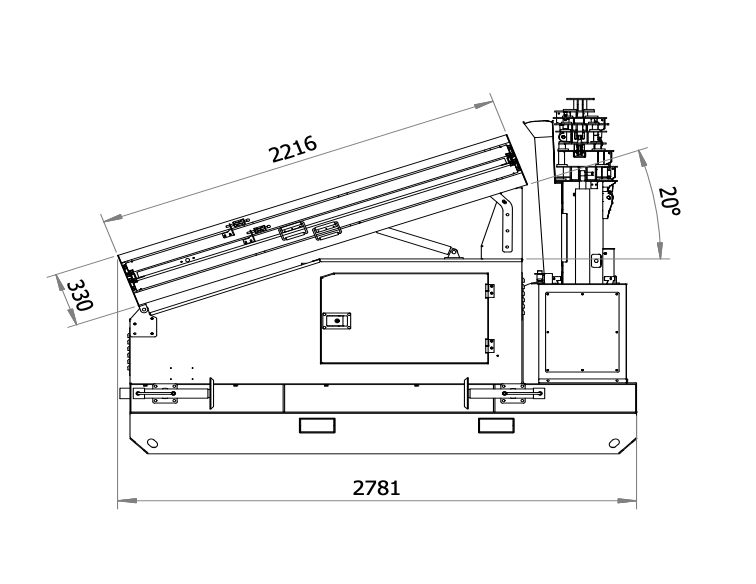

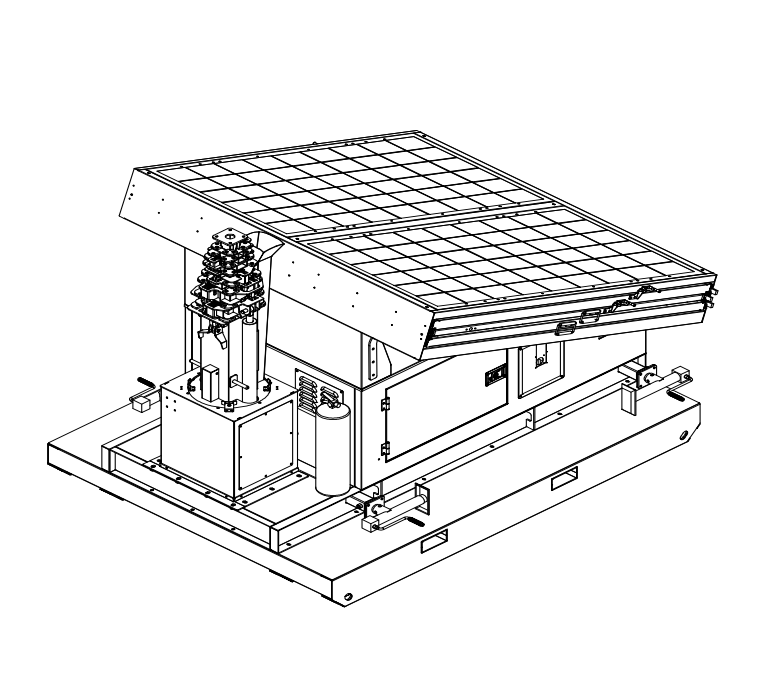

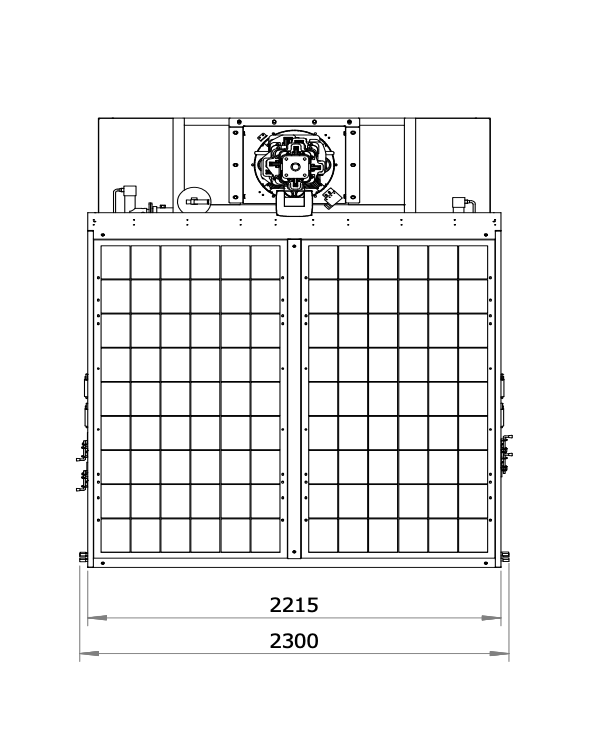

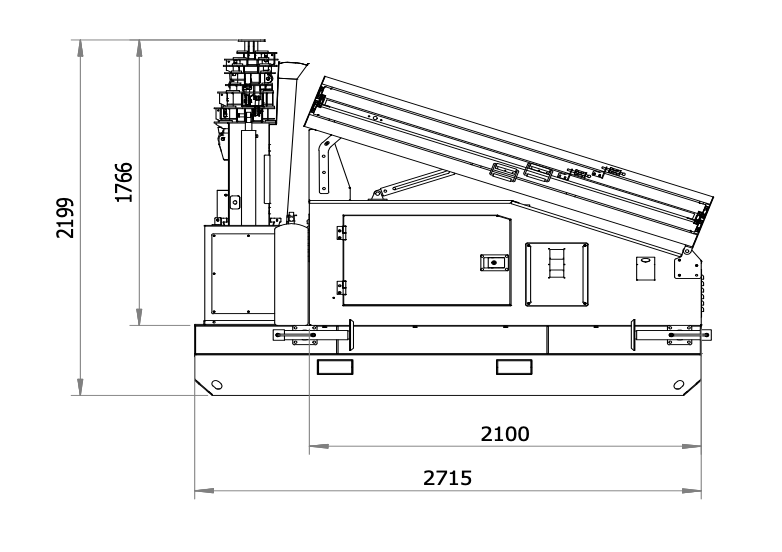

GTS-1800-SKID DIMENSIONS
| Model | GTS-1800-SKID |
|---|---|
| BASE | |
| Material | Steel Q235 |
| Powder | Anti Corrosion Powder |
| Dimension | Length × Width × Height |
| Transporting | 3200×2200×2500 (mm) |
| Operating | 3200×4300×9000 (mm) |
| Weight | 1600kg |
| System Voltage | |
| Work Temperature | |
| SOLAR | |
| Solar Panel | 4 × 460W Monocrystalline Panels Electric Lifting |
| Voltage | |
| Charging Time | 8.8 hours Solar |
| LAMP | |
| LED | 4 × 200W Module Outdoor Type, Smart-Lighting, Dimable |
| Protection Class | IP65 |
| Lumens | 120000Lm |
| Beam angle | |
| Voltage | |
| Running Time | 28.8 hours |
| MAST | |
| Body | Galvanized Steel Q235 |
| Fastener | Stainless steel 304 |
| Wire Rope | Stainless steel 316 |
| Type | Square Telescopic |
| Height | 9m |
| Section | 9 |
| Rotation | 360° Electric |
| Tilt | 90° Electric |
| Spring Cable | Power Supply |
| Lifting Method | Hydraulic |
| Recommended Loading | 100kg |
| Windproof | 117km/h |
| CHARGER | |
| Rated Power | 2.5kW / 2.5kVA |
| Input Voltage | AC220V |
| Charging Efficiency | |
| Charging Circuit | |
| Charging Time | 7.4 hours AC |
| Plug & Socket | 1 × AC240V |
| BATTERIES | |
| GEL | 12 × 200Ah |
| Voltage | DC12V |
| Series & Parallel | |
| Power Capacity | 19200Wh |
| CONTROL | |
| Solar Controller | MPPT 60A |
| Efficiency | 95%+ |
| Detection & Protection | Short-Circuit, Overload, High Voltage, High Temperature |
| Timer | Dusk & Dawn |
| Whole Machine | Battery Isolator, Light on-off, Mast / Panel up-down, Rotation & Tilt |
| TRAILER SYSTEM | |
| Standard | US / AU / EU |
| Forklift Hole | 2 |
| Outrigger | 4 × Manual, Galvanized |
| Warranty | 2 years |
| ACCESSORIES | |
| Operation Manual | Parts Manual |
| Controller Manual | Allen Wrench, Hex Wrench |
| CERTIFICATION | |
| ISO14001, ISO9001, OHSAS 18001, CE, SAA, UL | |
