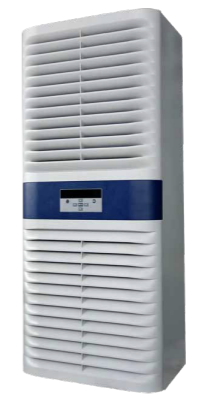

EXCALIBUR WALL MOUNTED AIR CONDITIONER 1000-2000W
Features
• Smart inverter control ensures a 40% reduction in energy consumption.
• Comprehensive isolation—dust proof, oil proof, mist proof moisture proof.
• Compact design, compatible with industry-standard models. Adjustable temperature range: -15 to +55°C.
• LCD display for easy parameter setting and alarm checks.
• MODBUS communication with power-on START-UP function.
• Nano coating provides anti-corrosion capabilities.
• Optional smoke, access control, and flooding alarms.
• Over 10 years of uninterrupted operation (24/7/365)
| Model No. | PVAVC100 | PVAVC150 | PVAVC200 |
|---|---|---|---|

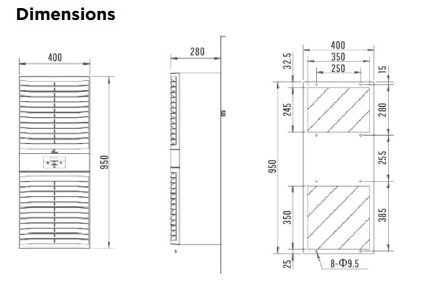

| Height / Width / Depth | 950 × 400 × 280 | 950 × 400 × 280 | 950 × 400 × 280 |
| Weight (kg) | <41 | <41 | <41 |
| Installation Mode | Outdoor (side mounting) | Outdoor (side mounting) | Outdoor (side mounting) |
| Working Temperature | -15 ~ +55 | -15 ~ +55 | -15 ~ +55 |
| Noise Level | 65 | 65 | 65 |
| IP Protection Class | IP54 | IP54 | IP54 |
| Refrigerant | R134a | R134a | R134a |
| Refrigerating Capacity (135 / 35) | 1100–1300 | 1500–1700 | 2000–2100 |
| Input Power @135 / 35 | 540–680 | 750–900 | 1000–1200 |
| Input Current @L35 / L35 | 2.5–3.2 | 3.5–4.2 | 4.6–5.7 |
| Rated Voltage | 1~, 220V, 50/60Hz | 1~, 220V, 50/60Hz | 1~, 220V, 50/60Hz |
