Excalibur Enclosure THERMOSTAT PVHTV2
Features
• Thermostat (normally open)
• Contact maker for regulating filter fans and heat exchangers or for switching signal device when temperature limit has been exceeded
• Large setting range
• Simple to mount
• High switching performance
Specifications
| MODEL NO. | PVHTV2 |
|---|---|
| Temperature range | 0 to +60 °C |

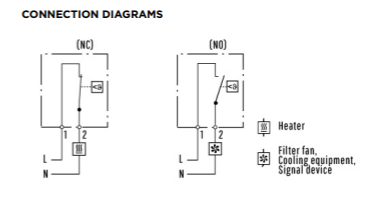

| NO (Normally open) | When the temperature exceeds the set value action, closed circuit |
| Switch temperature difference | 7K (+4K tolerance) |
| Sensor element | Thermostatic bi-metal snap-action |
| Contact type | <10m ohm (Incidental connection line) >100,000 cycles |
| Contact resistance / Service life | 250VAC,10(2)A; 120VAC,15(2)A; 30WDC at 24VDC to 72VDC |
| Max. Switching capacity / Connection | 2-pole terminal, clamping torque 0.5Nm max.; rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm² |
| Casing | Plastic according to UL94 V-0, light grey |
| Installation | 35mm DIN installation guide |

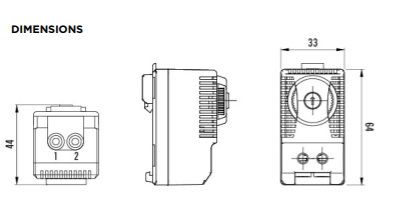

| Dimensions | 64 × 33 × 44 mm |
| Weight | 41.5g |
| Fitting position | Variable |
| Operating/Storage temperature | -20 to +80 °C |
| Protection type | IP20 |
| Approvals | CE |
