Excalibur Enclosure Heaters 60W
Features
• Pressure clamp connectors
• Dynamic warm up
• Wide voltage range
• Aluminium profile heater body creates a chimney effect even heating
• Temperature limiting
• Energy saving
• Clip fixing
• Quick installation
Specifications
| MODEL NO. | PVSHT60W |
|---|---|
| Operating voltage | 110-250V AC/DC |
| Heating Capacity | 60W |
| Inrush Current max. | 3.5W |
| Heating element | PTC resistor, self regulating and temperature limiting |
| Heater body | Extruded aluminium profile, anodised |

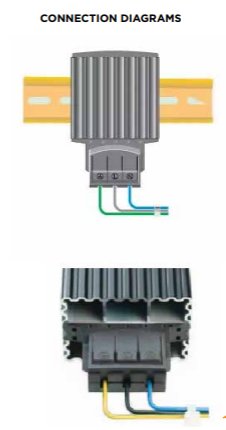

| Connection casing | 3 pressure clamps for stranded wire 0.5-1.5mm² (with wire and ferrule) and rigid wire 0.5-2.5mm², plastic according to UL94 V-0, black |
| Mounting | Clip for 35mm DIN rail, EN 50022 |
| Fitting position | Vertical |
| Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
| Protection type/Protection class | IP20 (earthed) |
| Certificate | CE |

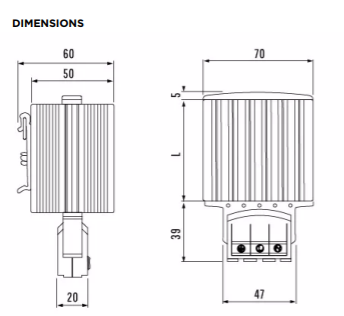

| Length (mm) | 70 |
| Weight (kg) | 0.25 |
