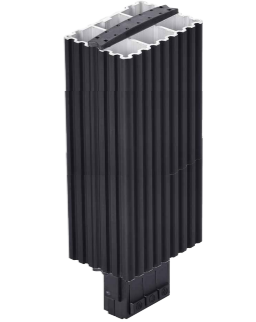

Excalibur Enclosure Heaters 100W

Heaters

10 Mar

Written By Mogulby

Features

• Pressure clamp connectors

• Dynamic warm up

• Wide voltage range

• Aluminium profile heater body creates a chimney effect even heating

• Temperature limiting

• Energy saving

• Clip fixing

• Quick installation

Specifications


        MODEL NO.
        PVSHT100W

        Operating voltage
        110-250V AC/DC

        Heating Capacity
        100W

        Inrush Current max.
        4.5W

        Heating element
        PTC resistor, self regulating and temperature limiting

        Heater body
        Extruded aluminium profile, anodised

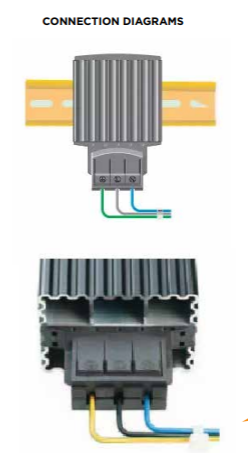

        Connection casing

          3 pressure clamps for stranded wire 0.5-1.5mm² (with wire and ferrule)
          and rigid wire 0.5-2.5mm², plastic according to UL94 V-0, black

        Mounting
        Clip for 35mm DIN rail, EN 50022

        Fitting position
        Vertical

        Operating/Storage temperature
        -45 to +70°C (-49 to +158°F)

        Protection type/Protection class
        IP20 (earthed)

        Certificate
        CE

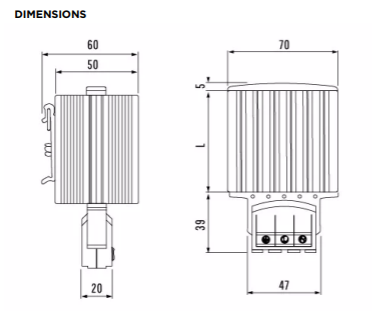

        Length (mm)
        140

        Weight (kg)
        0.40

MODEL NO.	PVSHT100W
Operating voltage	110-250V AC/DC
Heating Capacity	100W
Inrush Current max.	4.5W
Heating element	PTC resistor, self regulating and temperature limiting
Heater body	Extruded aluminium profile, anodised
Connection casing	3 pressure clamps for stranded wire 0.5-1.5mm² (with wire and ferrule) and rigid wire 0.5-2.5mm², plastic according to UL94 V-0, black
Mounting	Clip for 35mm DIN rail, EN 50022
Fitting position	Vertical
Operating/Storage temperature	-45 to +70°C (-49 to +158°F)
Protection type/Protection class	IP20 (earthed)
Certificate	CE
Length (mm)	140
Weight (kg)	0.40
