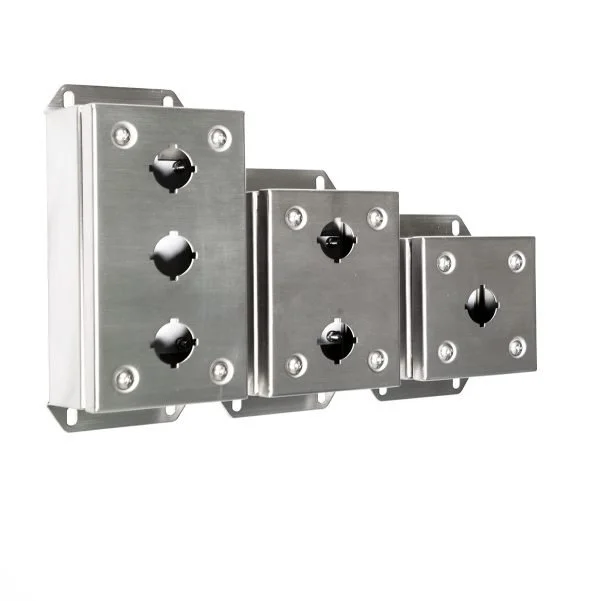

Stainless Steel Push Button Station

Features

• 316 stainless steel

• IP66

• Body construction 1.5mm

• Universal enclosure

• Flange mounted

• Fully welded construction

• Captive screws

• Mounting pan 2mm powder coated white mild steel

• Earth strap kit

• 30mm PB holes

• 25mm conduit entry holes


Options

• 22mm holes (CI)

Model No	Height (mm)	Width (mm)	Depth (mm)	No holes (30mm)	No Conduit Entry Holes	Useable Depth
PSPB1	120	120	84	1	1	74
PSPB2	160	120	84	2	2	74
PSPB3	220	120	84	3	2	74
PSPB4	280	120	84	4	2	74
PSPB5	336	120	84	5	2	74
PSPB6	220	180	84	6	2	74
PSPB8	220	180	84	8	2	74
PSPB9	220	240	84	9	2	74

Download brochure

STAINLESS STEEL PUSH BUTTON STATION (pdf)

Download Technical Files

LOG IN TO ACCESS ALL THE TECHNICAL FILES
