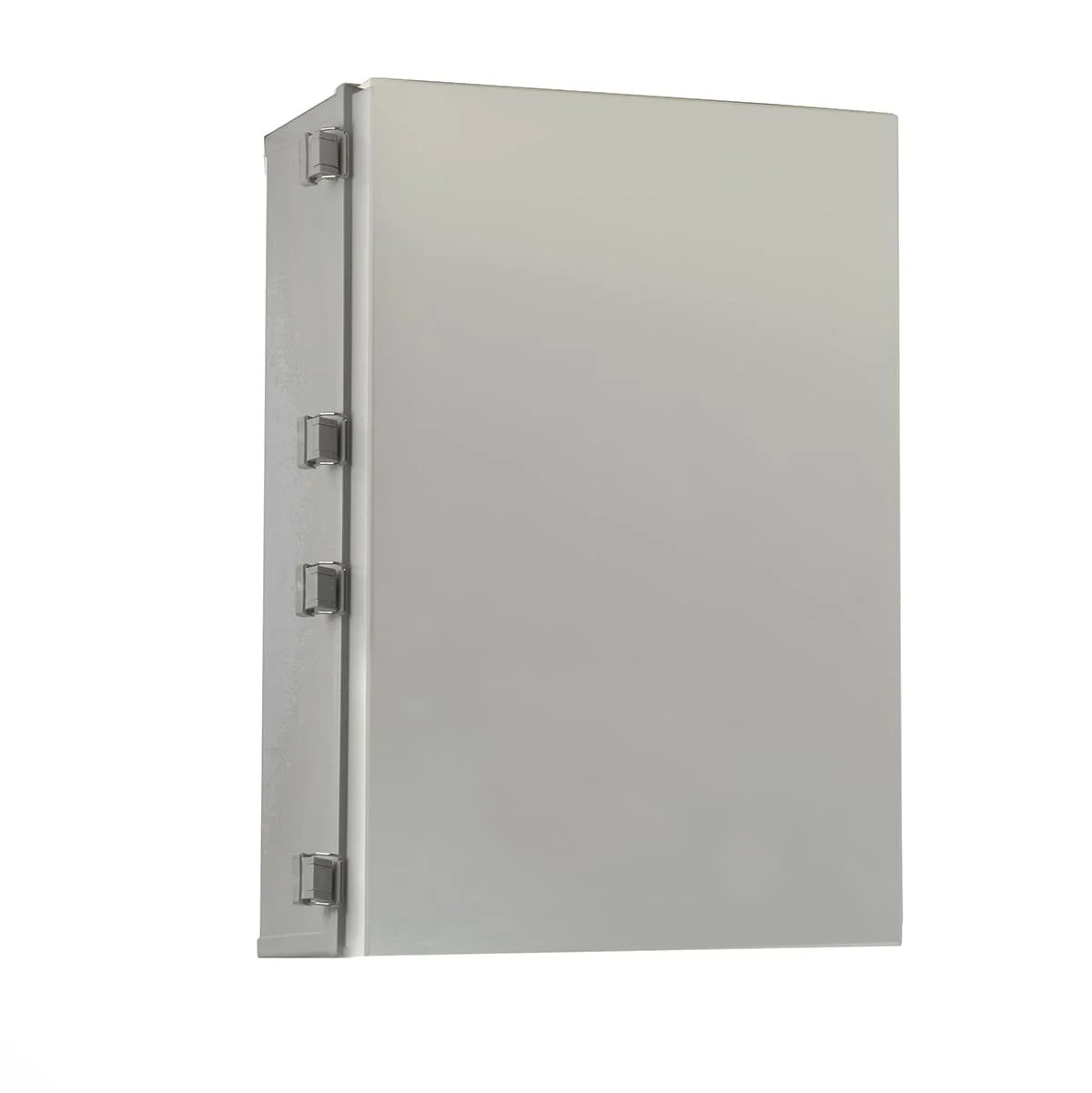

NON-METALLIC ENCLOSURES GREY DOOR ABS HINGED DOOR
Features
IP66
ABS/PC construction
Grey and clear door options
Hinged door (latch and hinge type)
IK08 impact resistant
-40 degrees to 120 degrees celsius
ANSI/IEC 60529-2004
Grey Door ABS Hinged Door Enclosure Selection Table
| Model No | Dimensions (mm) | ||
|---|---|---|---|
| Height | Width | Depth | |
| PNMG2030 | 300 | 200 | 180 |
| PNMG3030 | 300 | 300 | 180 |
| PNMG3040 | 400 | 300 | 180 |
| PNMG4030 | 300 | 400 | 180 |
| PNMG4050 | 500 | 400 | 200 |
| PNMG4060 | 600 | 400 | 200 |
Mounting Pans to Suit MG & MT Enclosures
| Model No | Metal Mounting Plate to Suit MG + MT Enclosures |
|---|---|
| PN2030 | Metal Mounting Plate for MG + MT 2030 Enclosures |
| PN3030 | Metal Mounting Plate for MG + MT 3030 Enclosures |
| PN3040 | Metal Mounting Plate for MG + MT 3040 Enclosures |
| PN4030 | Metal Mounting Plate for MG + MT 4030 Enclosures |
| PN4050 | Metal Mounting Plate for MG + MT 4050 Enclosures |
| PN4060 | Metal Mounting Plate for MG + MT 4060 Enclosures |
