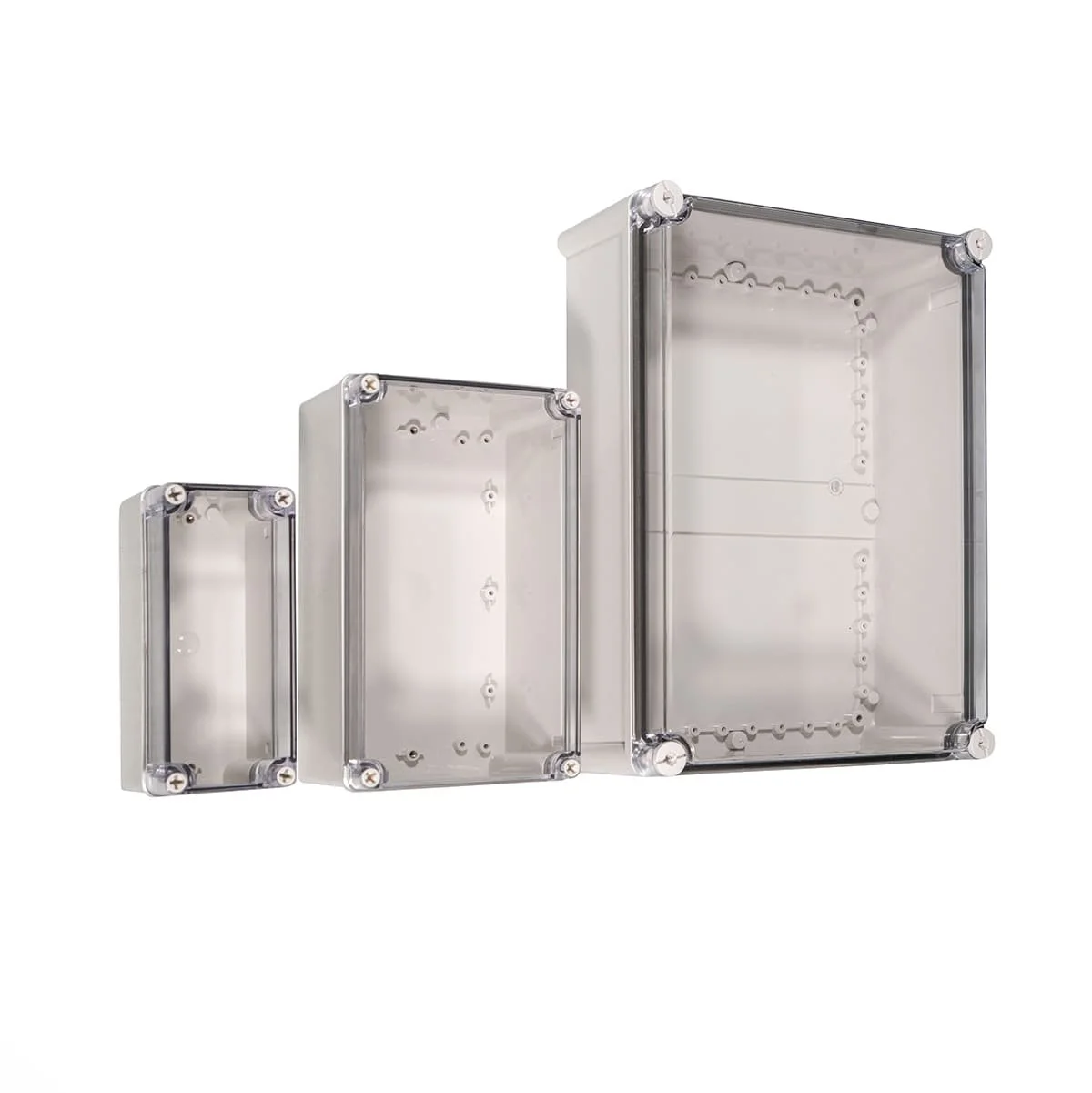

NON-METALLIC ENCLOSURES CLEAR COVER ABS SCREW TYPE
Features
IP66
ABS/PC construction
Grey and clear cover options
IK08 impact resistant
-40 degrees to 120 degrees celsius
ANSI/IEC 60529-2004
Clear Cover ABS Screw Type Enclosure Selection Table
| Model No | Dimensions (mm) | ||
|---|---|---|---|
| Height | Width | Depth | |
| PNAT0506 | 50 | 65 | 55 |
| PNAT0712 | 125 | 75 | 75 |
| PNAT0712-1 | 125 | 75 | 100 |
| PNAT0811 | 110 | 80 | 70 |
| PNAT0811-1 | 110 | 80 | 85 |
| PNAT0813-1 | 130 | 80 | 85 |
| PNAT0818-1 | 180 | 80 | 85 |
| PNAT0825-1 | 250 | 80 | 85 |
| PNAT1212 | 125 | 125 | 100 |
| PNAT1217-1 | 175 | 125 | 100 |
| PNAT1520 | 200 | 150 | 100 |
| PNAT1525 | 250 | 150 | 100 |
| PNAT2020 | 200 | 200 | 130 |
| PNAT1717-1 | 175 | 175 | 100 |
| PNAT1717 | 175 | 175 | 75 |
| PNAT1725-1 | 250 | 175 | 100 |
| PNAT2819-1 | 190 | 280 | 180 |
| PNAT3819 | 380 | 190 | 130 |
| PNAT2834 | 340 | 280 | 130 |
| PNAT2838 | 380 | 280 | 130 |
Mounting Pans to Suit AG & AT Enclosures
| Model No | Metal Mounting Plate to Suit AG + AT Enclosures |
|---|---|
| PN0506 | Metal Mounting Plate for AG + AT 0506 Enclosures |
| PN0712 | Metal Mounting Plate for AG + AT 0712 Enclosures |
| PN0811 | Metal Mounting Plate for AG + AT 0811 Enclosures |
| PN0813 | Metal Mounting Plate for AG + AT 0813 Enclosures |
| PN0816 | Metal Mounting Plate for AG + AT 0816 Enclosures |
| PN0818 | Metal Mounting Plate for AG + AT 0818 Enclosures |
| PN0825 | Metal Mounting Plate for AG + AT 0825 Enclosures |
| PN1212 | Metal Mounting Plate for AG + AT 212 Enclosures |
| PN1217 | Metal Mounting Plate for AG + AT 217 Enclosures |
| PN1417 | Metal Mounting Plate for AG + AT 417 Enclosures |
| PN1423 | Metal Mounting Plate for AG + AT 423 Enclosures |
| PN1520 | Metal Mounting Plate for AG + AT 520 Enclosures |
| PN1525 | Metal Mounting Plate for AG + AT 525 Enclosures |
| PN1717 | Metal Mounting Plate for AG + AT 717 Enclosures |
| PN1725 | Metal Mounting Plate for AG + AT 725 Enclosures |
| PN2020 | Metal Mounting Plate for AG + AT 2020 Enclosures |
| PN2819 | Metal Mounting Plate for AG + AT 2819 Enclosures |
| PN2828 | Metal Mounting Plate for AG + AT 2828 Enclosures |
| PN3428 | Metal Mounting Plate for AG + AT 3428 Enclosures |
| PN3828 | Metal Mounting Plate for AG + AT 3828 Enclosures |
