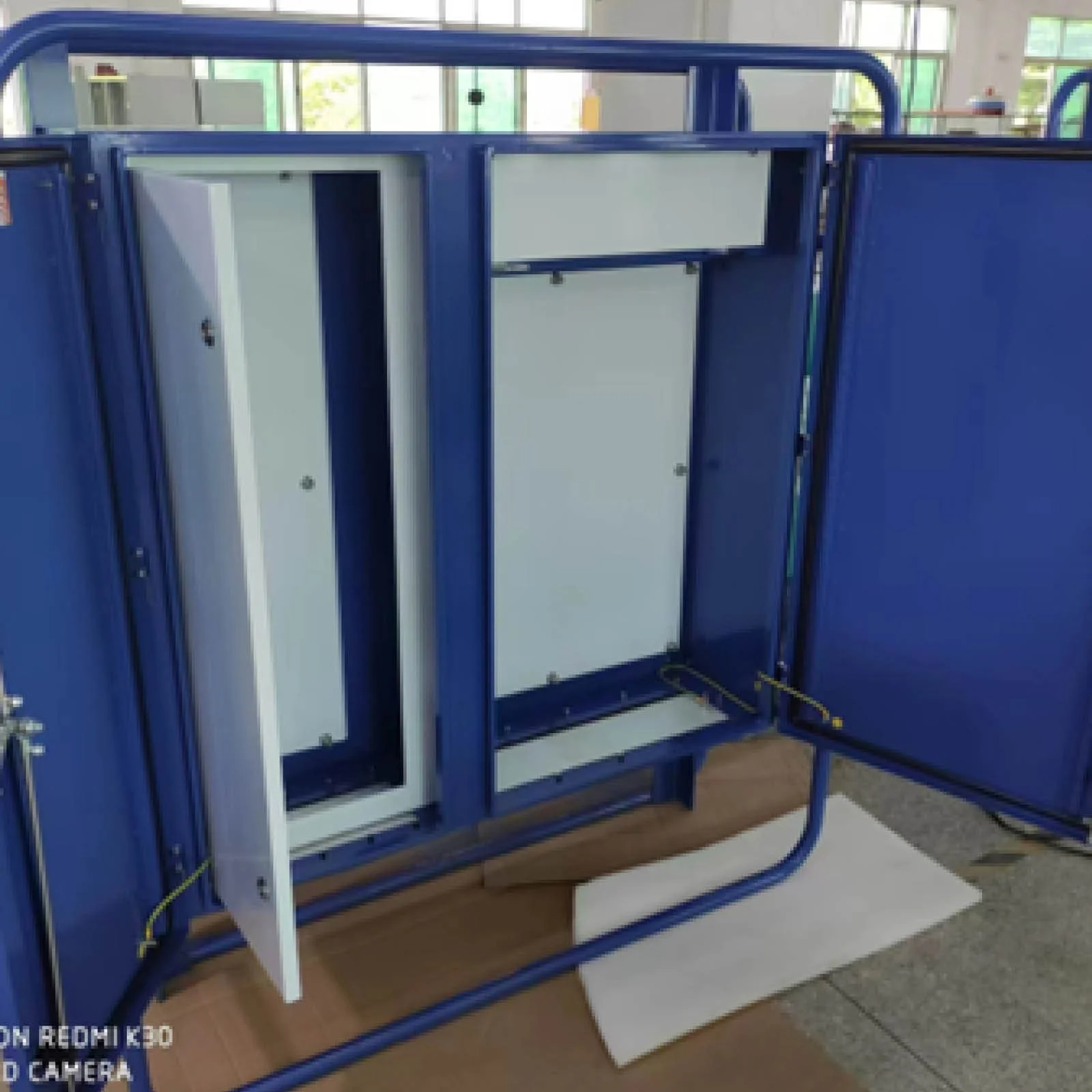

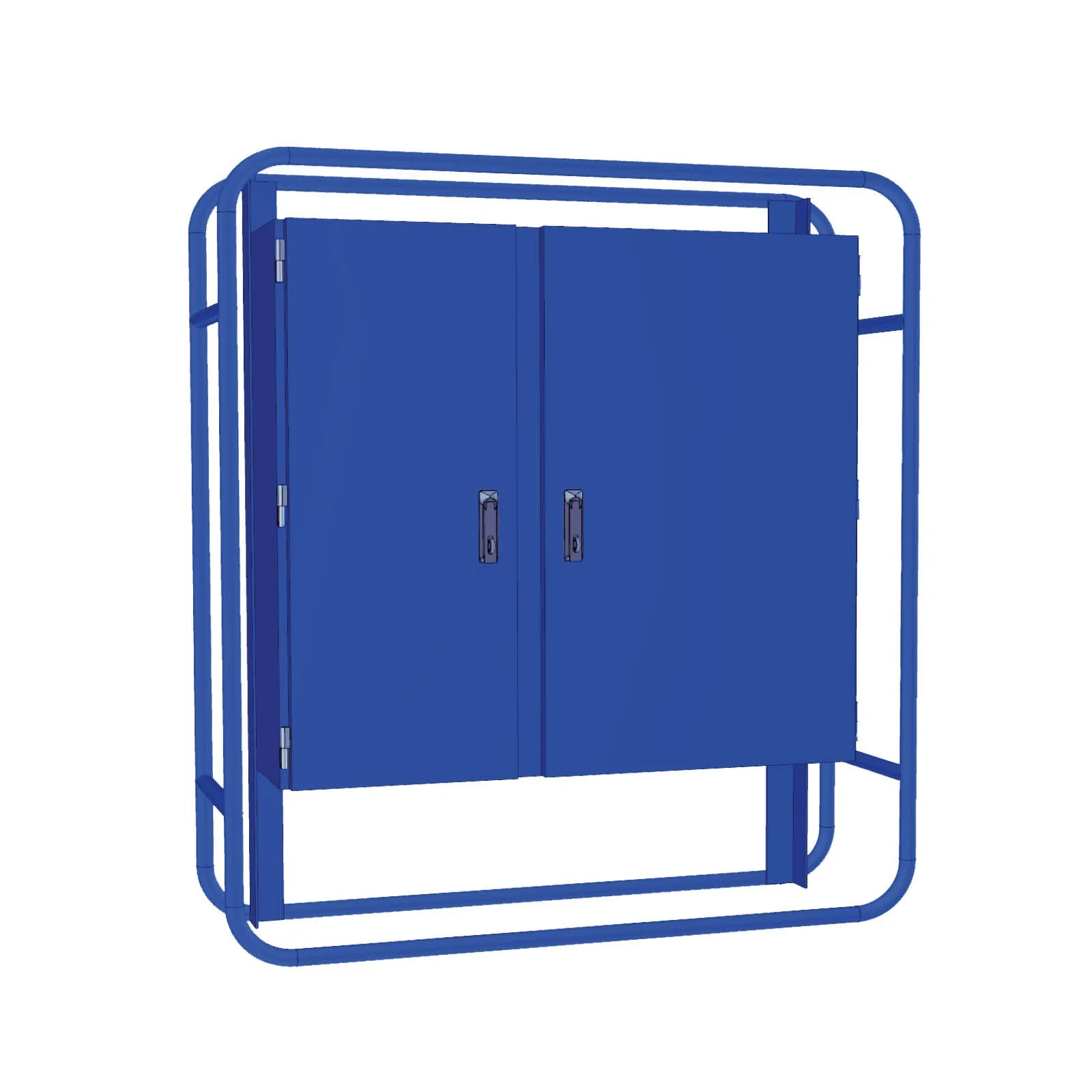

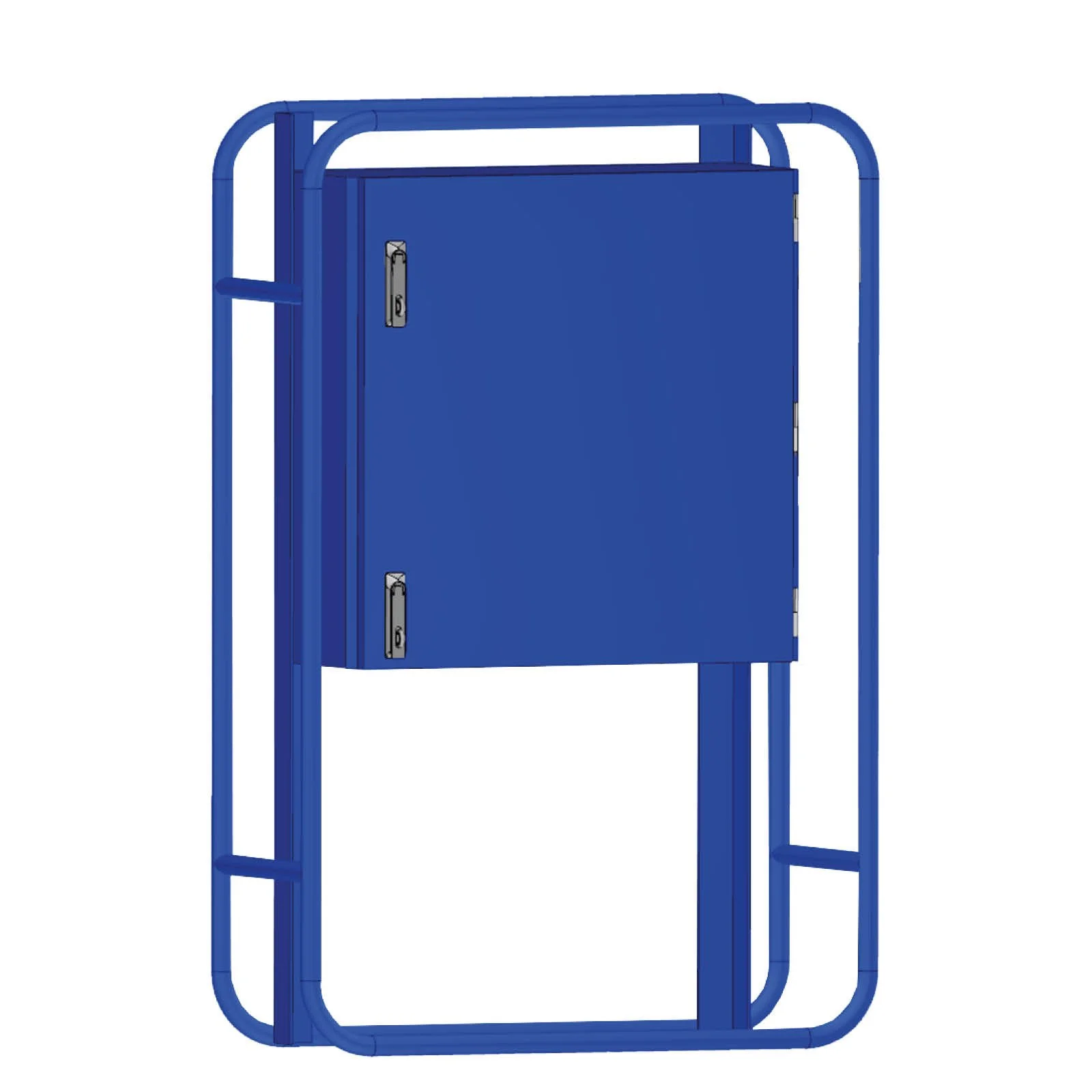

MILD STEEL ROLLOVER PROTECTION ENCLOSURES PMJ1000V
Features
• Powder coated mild steel enclosure + frame
• Panel rated at IP66
• Polyurethane pour in place gaskets
• Multiple sizes available
• Pintle hinges/removable doors
• Dual Padlockable Swing Handles
• Document Holder and Door Rails
• 5mm Aluminium Gland Plate and Earth Strap Kit
• 25NB Round Roll Over Cage
• Panel & Cage Bolted together standard
• French Blue BS-381C 166 FRENCH BLUE
• IP, IK, UV, Corrosion Test reports available
| Model No | Enclosure Dimensions (mm) |
Enclosure + Cage Dimensions (mm) |
Doors | Useable Depth |
|---|---|---|---|---|
| H × W × D | H × W × D | |||
| PMJ606030-FRA | 600 × 600 × 300 | 970 × 820 × 400 | Single | 282 |
| PMJ806030-FRA | 800 × 600 × 300 | 1540 × 815 × 400 | Single | 282 |
| PMJ808030-FRA | 800 × 800 × 300 | 1540 × 1020 × 400 | Single | 282 |
| PMJ10010030-FRA | 1000 × 1000 × 300 | 1540 × 1220 × 400 | Single | 282 |
| PMJ10811333-FRA | 1080 × 1135 × 330 | 1540 × 1350 × 400 | Double | 312 |
| PMJ1080153530-FRA | 1080 × 1535 × 300 | 1540 × 1750 × 400 | Double | 282 |
