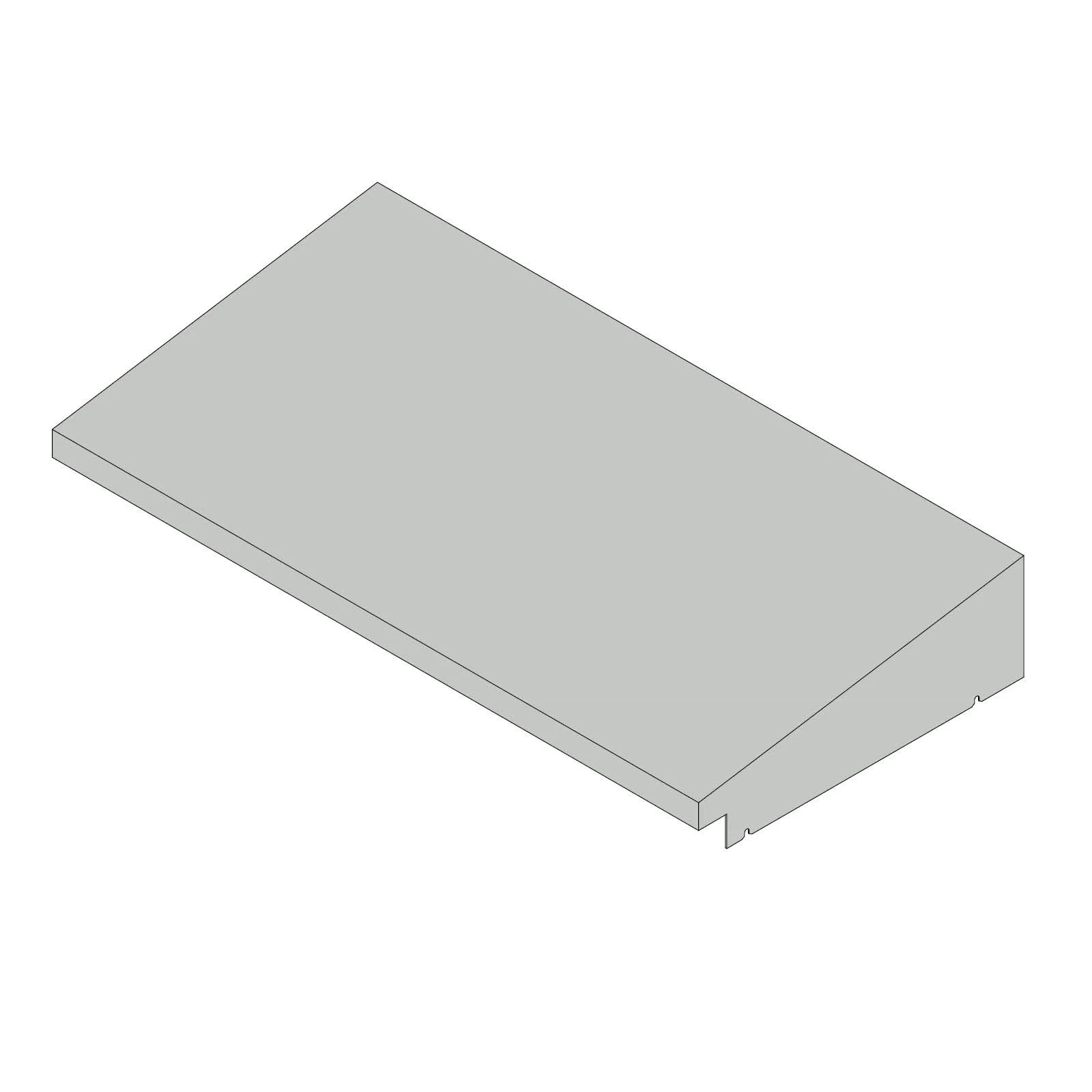

MILD STEEL RAIN HOOD RAL 7035
Features
• Mild steel
• Fully Welded 1.5mm Steel Construction
• Powder coated RAL 7035 Grey
• Multiple sizes available
• Suitable for Excalibur PMX / PSX / PSFS Series
& Other enclosures

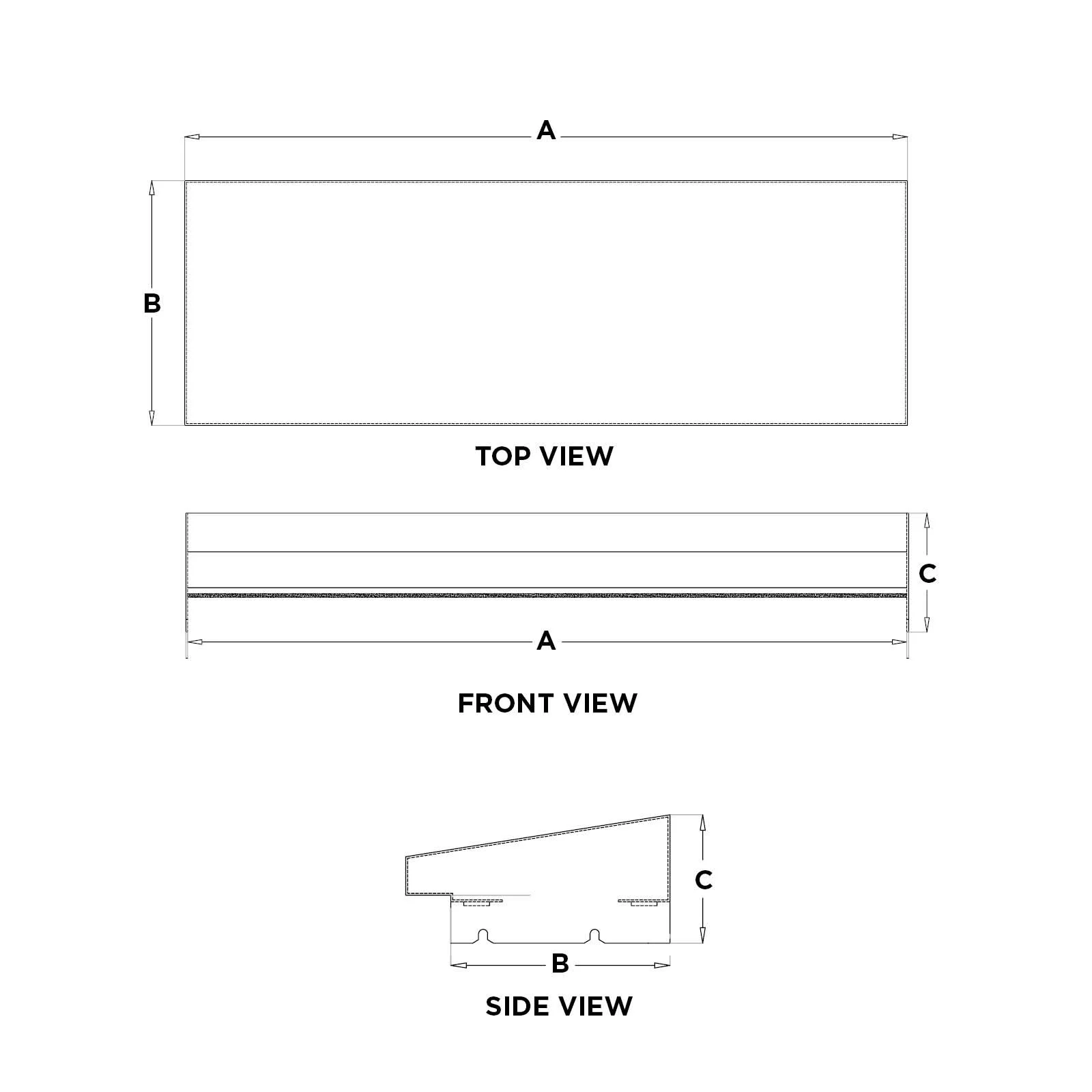

| Model No | Suitable Enclosures W x D |
Dimensions (mm) | ||
|---|---|---|---|---|
| Width (A) | Depth (B) | Height (C) | ||
| PRH2015-G | 200 x 150 | 205 | 155 | 91.5 |
| PRH3015-G | 300 x 150 | 305 | 155 | 91.5 |
| PRH3020-G | 300 x 200 | 305 | 205 | 99.5 |
| PRH4020-G | 400 x 200 | 405 | 205 | 99.5 |
| PRH6020-G | 600 x 200 | 605 | 205 | 99.5 |
| PRH6030-G | 600 x 300 | 605 | 305 | 115 |
| PRH8030-G | 800 x 300 | 805 | 305 | 115 |
| PRH8040-G | 800 x 400 | 805 | 405 | 131 |
