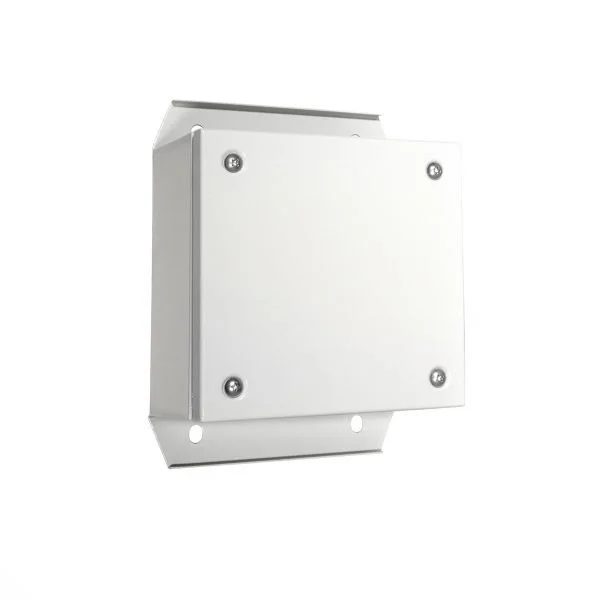

Features
IP66
Body construction 1.5mm
Grey RAL7035 epoxy UV resistant polyester powder coat
Captive screws (lid)
Flange mounted
Polyurethane gasket
M6 earth stud
2mm galvanised mounting pan
| Model No | Dimensions (mm) | Useable Depth | ||
|---|---|---|---|---|
| Height | Width | Depth | ||
| PMTB111175 | 110 | 110 | 75 | 65 |
| PMTB151580 | 150 | 150 | 80 | 70 |
| PMTB151512 | 150 | 150 | 120 | 110 |
| PMTB201512 | 200 | 150 | 120 | 110 |
| PMTB201590 | 200 | 150 | 90 | 80 |
| PMTB202080 | 200 | 200 | 80 | 70 |
| PMTB202012 | 200 | 200 | 120 | 110 |
| PMTB202090 | 200 | 200 | 90 | 80 |
| PMTB302012 | 300 | 200 | 120 | 110 |
| PMTB302090 | 300 | 200 | 90 | 80 |
| PMTB303012 | 300 | 300 | 120 | 110 |
| PMTB402012 | 400 | 200 | 120 | 110 |
| PMTB403012 | 400 | 300 | 120 | 110 |
| PMTB503012 | 500 | 300 | 120 | 110 |
| PMTB504012 | 500 | 400 | 120 | 110 |
| PMTB604012 | 600 | 400 | 120 | 110 |
| PMTB806015 | 800 | 600 | 150 | 140 |
