ESCUTCHEON KITS

Features

• Powder coated white mild steel 1.5mm
• Fully welded construction
• Slotted mounting holes
• Multiple sizes available

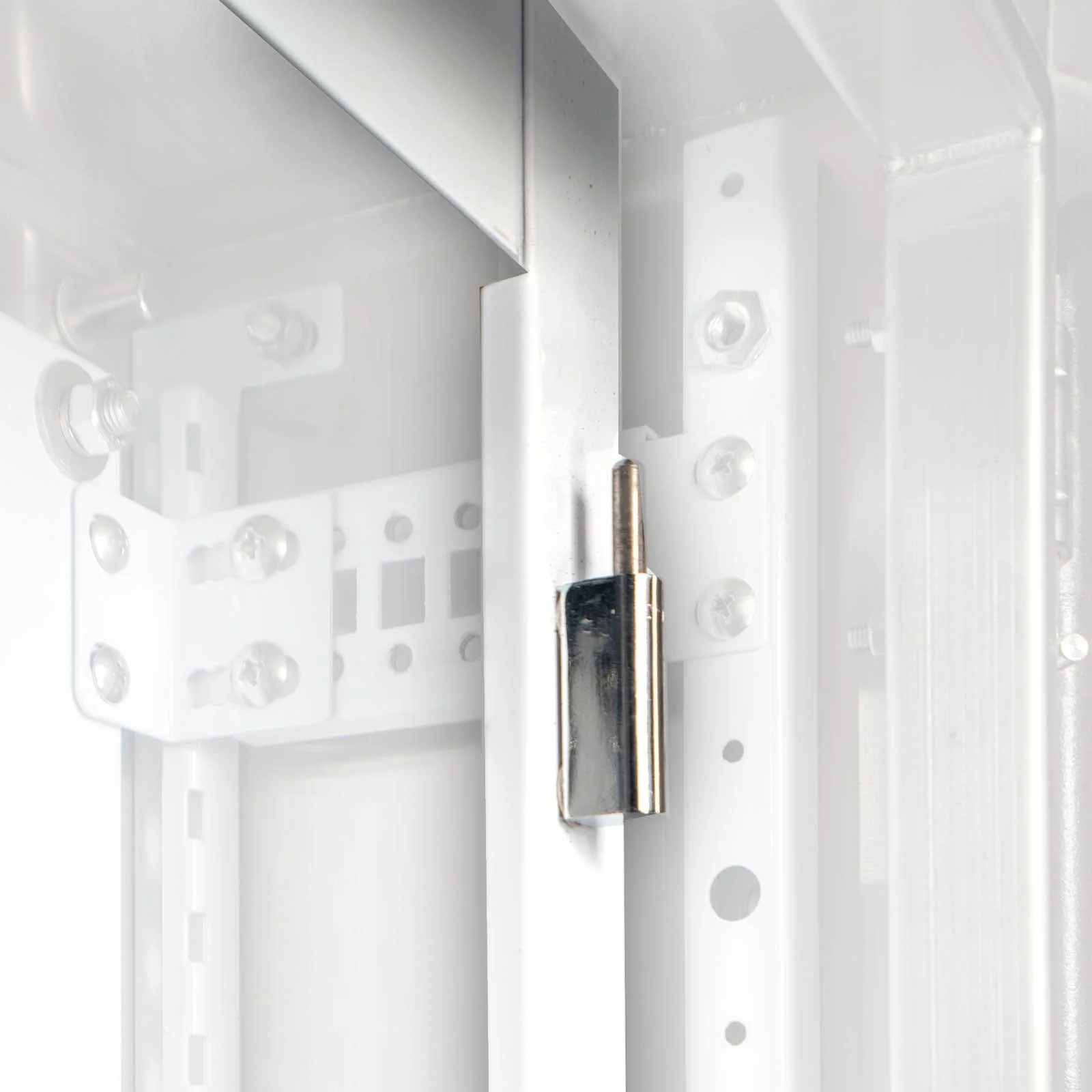

• pintle hinges/ removable inner door
• All Screws / Bolts Included
• Earthing Kit included

View fullsize

View fullsize

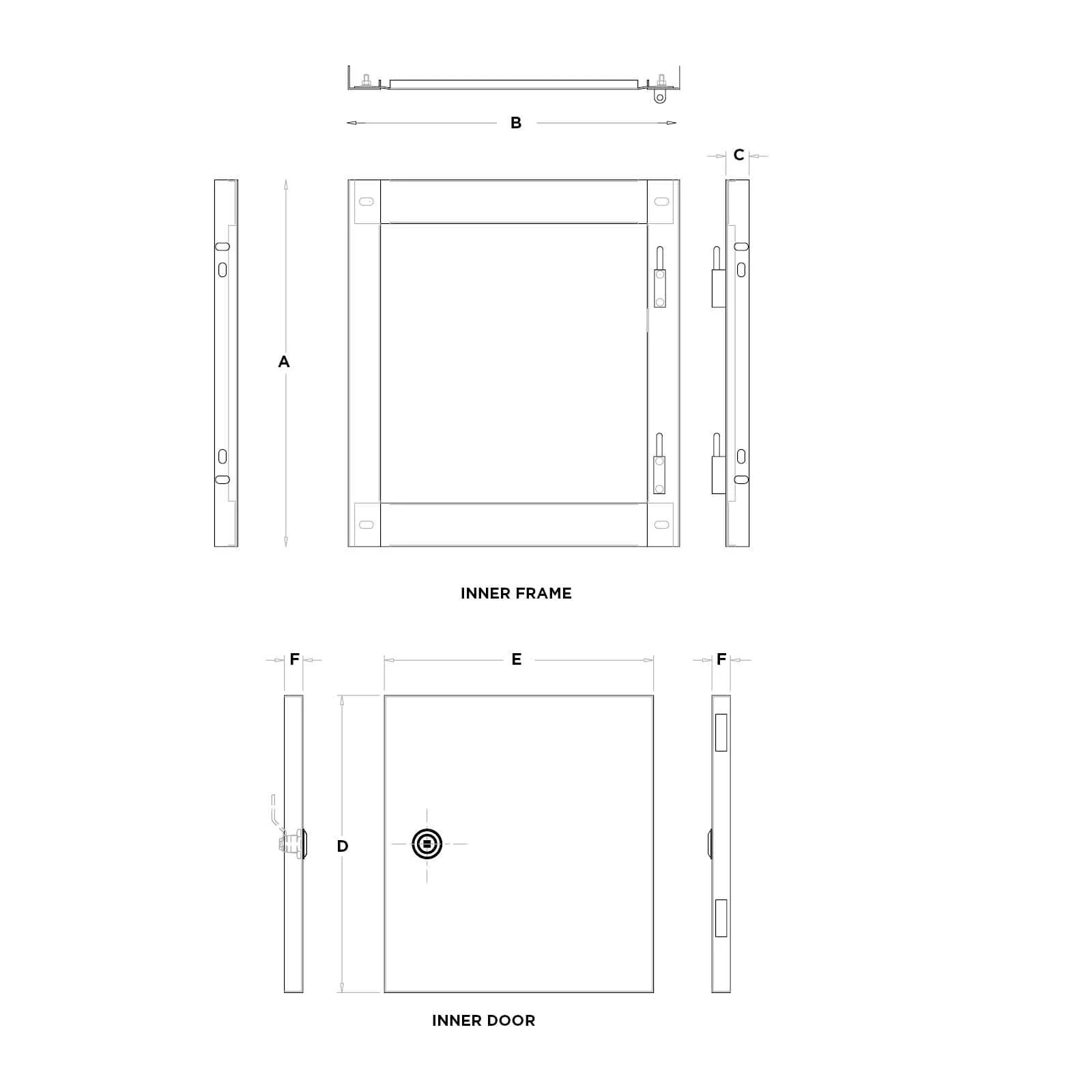

Model No	Inner Frame Dimensions (mm)			Door Dimensions (mm)			Suits Enclosure
	Height	Width	Depth	Height	Width	Depth
PAIDK4040	357	395	25	320	290	20	400 x 400
PAIDK4050	395	457	25	320	490	20	400 x 500
PAIDK4060	395	547	25	320	490	20	400 x 600
PAIDK5040	495	347	25	420	290	20	500 x 400
PAIDK5050	495	447	25	420	390	20	500 x 500
PAIDK5060	495	547	25	420	490	20	500 x 600
PAIDK5070	495	647	25	420	590	20	500 x 700
PAIDK6040	595	347	25	520	290	20	600 x 400
PAIDK6050	595	447	25	520	390	20	600 x 500
PAIDK6060	595	547	25	520	490	20	600 x 600
PAIDK6080	595	747	25	520	690	20	600 x 800
PAIDK7040	695	347	25	620	290	20	700 x 400
PAIDK7050	695	447	25	620	390	20	700 x 500
PAIDK7060	695	547	25	620	490	20	700 x 600
PAIDK7080	695	747	25	620	690	20	700 x 800
PAIDK8060	795	547	25	720	490	20	800 x 600
PAIDK8080	795	747	25	720	590	20	800 x 800
PAIDK10050	995	447	25	920	390	20	1000 x 500
PAIDK10060	995	547	25	920	490	20	1000 x 600
PAIDK12060	995	747	25	1120	490	20	1200 x 600
PAIDK12080	1195	547	25	1120	690	20	1200 x 800
PAIDK16060	1195	747	25	1520	490	20	1600 x 600
PAIDK16080	1595	547	25	1520	690	20	1600 x 600
PAIDK18060	1595	747	25	1720	490	20	1800 x 600
PAIDK18080	1795	547	25	1720	690	20	1800 x 800
PAIDK20060	1795	747	25	1920	490	20	2000 x 600
PAIDK20080	1995	547	25	1920	690	20	2000 x 800
PAIDK60100	1995	747	25	520	890	20	600 x 1000
PAIDK70100	595	947	25	620	890	20	700 x 1000
PAIDK80100	695	947	25	720	890	20	800 x 1000
PAIDK80120	795	947	25	720	1090	20	800 x 1200
PAIDK100100	995	947	25	920	890	20	1000 x 1000
PAIDK120100	947	1195	25	1120	890	20	1200 x 1000

---
